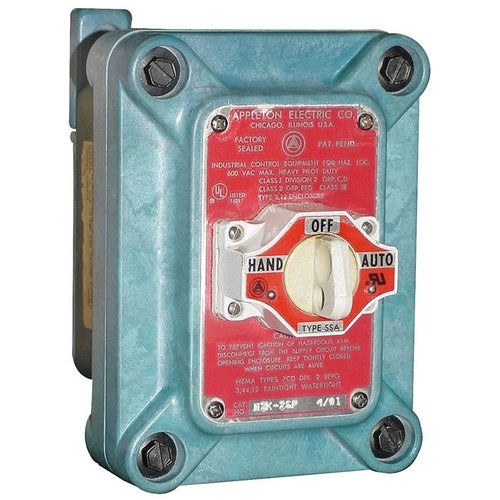

Appleton N1DC75-12 Selector Switch Station

Overview

Appleton N1DC75-12 Selector Switch Station

Product Specifications

• UPC: 78138151309
• Number Of Circuits: 2
• Number Of Positions: 2
• Operator Type: KNOB
• Box Type: SINGLE GANG
• Hub Size: (2) 1/2 INCH OR 3/4 INCH
• Enclosure Material: GLASS REINFORCED THERMOPLASTIC POLYETHERIMIDE
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, NEMA 3/4X/7C/7D/12
• Additional Information: LEGEND MARKING HAND-AUTO
• Catalog Number: N1DC75-12
• Brand Name: Appleton[R]
• Model: N1
• Type: FEED THROUGH
• Constructional Feature: DUST IGNITION PROOF, EXPLOSION PROOF, RAIN TIGHT, WATER TIGHT
• Voltage Rating: 600 VAC
• Current Rating: 10 AMPERE
• Contact Configuration: 2NO-2NC
• Catalog Description: SELECTOR SWITCH CONTROL STATION, TYPE FEED THROUGH, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, CONTACT CONFIGURATION 1NO-1NC, NUMBER OF CIRCUITS 2, NUMBER OF POSITIONS 2, OPERATOR TYPE KNOB, BOX TYPE SINGLE GANG, HUB SIZE 1/2 INCH OR 3/4 INCH, ENCLOSURE MATERIAL GLASS REINFORCED THERMOPLASTIC POLYETHERIMIDE, ENCLOSURE CLASS I DIV 1 AND 2 GROUP C D, NEMA 3/4X/7CD/12, APPROVAL UL 698, OVERALL SIZE 4.5 INCH W X 6.5 INCH D X 6.19 INCH H, APPLICATION HAZARDOUS LOCATION, LEGEND HAND-AUTO
• Category: Selector Switch Complete Assemblies
• Full Technical Description: Feed-Through Type; 2NO-2NC Contact Configuration; 1/2 Inch or 3/4 Inch Hub Size; 30 Percent Glass Reinforced Thermoplastic Polyetherimide Enclosure Material; UL 508/698/1203 Approval; 600 Volt AC Voltage Rating; Class I Div 1 and 2 Group C D, NEMA 3R/4X/7CD/12 Enclosure; 10 Amp Current Rating; Explosionproof; Knob Operator Type; 2 Position(S); 2 Circuit(S); INTRAGROUND[TM] Brand; Legend Hand-Auto; Color Neutral; Applicable Standard NEC; N1 Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Selector Switch Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381513098
• SKU Name: app n1dc7512

Resources

• Manufacturer Spec Sheet
