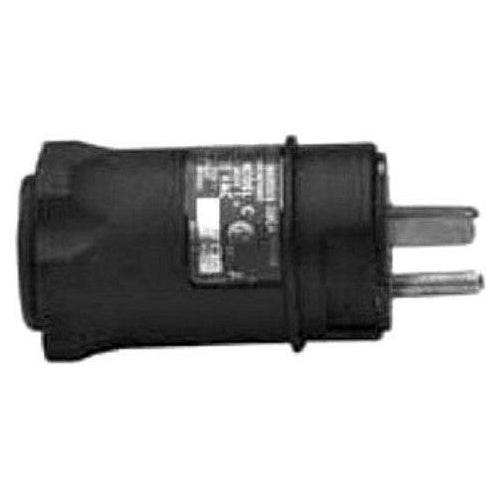

Appleton NCP20232 Ncp Plug Assembly

Overview

Appleton NCP20232 Ncp Plug Assembly

Product Specifications

• UPC: 78138150389
• Ground Type: Grounding
• Cord Size: 0.538 to 0.639 Inch
• Material: Glass Reinforced Thermoplastic Polyester
• Catalog Number: NCP20232
• Brand Name: U-Line[R], Interchanger[TM]
• Type: Polarized
• Constructional Feature: Explosionproof, Dust Ignitionproof, Watertight
• Voltage Rating: 250 V
• Current Rating: 20 Ampere
• Number Of Poles: 3
• Number Of Wires: 2
• Catalog Description: APPLETON U-LINE NCP PLUG, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 250 VAC, MATERIAL: 30 PCT GLASS-REINFORCED THERMOPLASTIC POLYESTER, NEMA RATING: NEMA 7BCD, 9G, PLUG CABLE DIAMETER: 0.538 - 0.639 IN, DIME
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: 30 Percent Glass Reinforced Thermoplastic Polyether Material; NEMA 6-20P Configuration; 2 Wire(S); 250 Volt AC Voltage Rating; 20 Amp Current Rating; 3 Pole(S); Explosionproof, Dust Ignitionproof, Water Tight; U-LINE[TM] Brand; Enclosure Rating Class I, Div 1 and 2 Groups B, C, D, Class II Div 1 and 2 Groups F, G, Class III; Application Hazardous Location; Applicable Standard Nec/Cec; NCP Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Straight Blade Plug
• Unspsc: 39121402
• UPC 12 Digit: 781381503891
• SKU Name: app ncp20232

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
