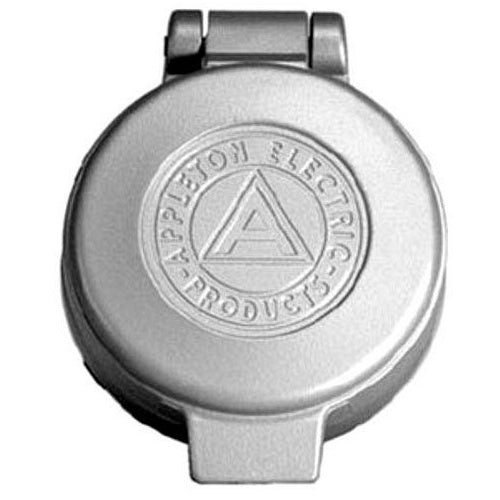

Appleton PTSC30 30A Flip Cover Assembly

Overview

Appleton PTSC30 30A Flip Cover Assembly

Product Specifications

• UPC: 78138174252
• Catalog Number: PTSC30
• Brand Name: Powertite.
• Current Rating: 30 AMPERE
• Number Of Poles: 2, 3, 4
• Used On: POWERTITE. RECEPTACLE
• Additional Information: INCLUDES GASKET, RING
• Catalog Description: RECEPTACLE SPRING COVER, FOR POWERTITE 30 AMP 2, 3 AND 4-POLE RECEPTACLES
• Category: Pin & Sleeve Devices
• Full Technical Description: Pin and Sleeve Receptacle Used on; 30 Amp Current Rating; 2, 3 and 4 Pole(S); POWERTITE[TM] Brand; Voltage Rating 600 Volt AC 50/400 Hertz, 250 Volt DC; Enclosure Rating NEMA 3/4/4X; Includes Gasket; Application Ordinary Location; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Device Cap
• Unspsc: 39121406
• UPC 12 Digit: 781381742528
• SKU Name: app ptsc30
