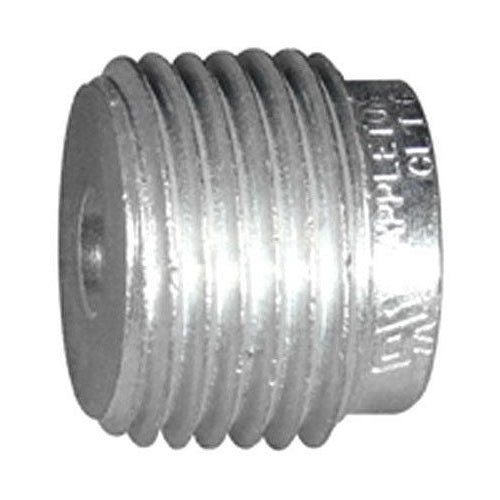

Appleton RB250-150A 2-1/2-1-1/2 Aluminum Reducing Bushing

Overview

Appleton RB250-150A 2-1/2-1-1/2 Aluminum Reducing Bushing

Product Specifications

• UPC: 78138173662
• Additional Information: Finish Natural; Used On Rigid Conduit/IMC
• Catalog Number: RB250-150A
• Model: RB
• Type: Threaded
• Large End Trade Size: 2-1/2 Inch
• Small End Trade Size: 1-1/2 Inch
• Enclosure: Class I Group A B C D, Class II Group E F G, Class III
• Material: Aluminum
• Approval: UL 886, CSA C22.2
• Catalog Description: REDUCING BUSHING, SIZE: 2-1/2 X 1-1/2 IN, MATERIAL: ALUMINUM, FINISH: NATURAL, CONNECTION: NPT, STANDARD: CLASS I: GROUPS A, B, C, D, CLASS II: GROUPS E, F, G, CLASS III, UL 886 (1203), UL E10444, CSA C22.2 NO. 25, C22.2 NO. 30, CSA 06
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Taper Threaded Type; Natural Aluminum Material; 1-1/2 Inch Small End Trade Size; 2-1/2 Inch Large End Trade Size; UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class I Zone 1 and 2 Group Iia Iib + H2, Class III Enclosure; Constructional Feature Explosionproof/Dust Ignitionproof; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; RB Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Reducer Bushing
• Unspsc: 39121312
• UPC 12 Digit: 781381736626
• SKU Name: app rb250150a

Resources

• Manufacturer Spec Sheet
