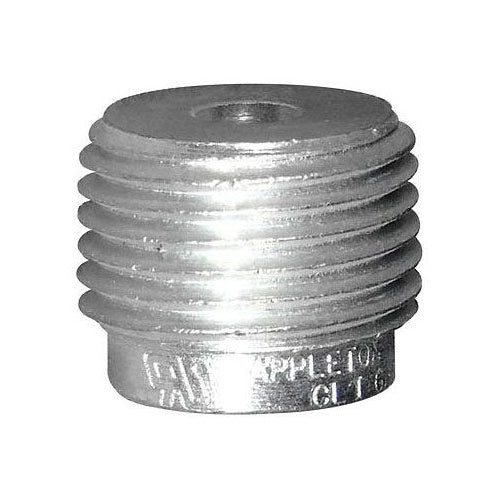

Appleton RB350-200 3-1/2-2 Reducing Bushing

Overview

Appleton RB350-200 3-1/2-2 Reducing Bushing

Product Specifications

• UPC: 78138173643
• Additional Information: Finish Zinc Electroplated/Chromate/Epoxy Powder Coated; Used On Rigid Conduit/IMC
• Catalog Number: RB350-200
• Model: RB
• Type: Threaded
• Large End Trade Size: 3-1/2 Inch
• Small End Trade Size: 2 Inch
• Enclosure: Class I Group A B C D, Class II Group E F G, Class III
• Material: Malleable Iron
• Approval: UL 886, CSA C22.2
• Catalog Description: REDUCING BUSHING, SIZE: 3-1/2 X 2 IN, MATERIAL: STEEL, FINISH: ZINC ELECTROPLATE, CONNECTION: NPT, STANDARD: CLASS I: GROUPS A, B, C, D, CLASS II: GROUPS E, F, G, CLASS III, UL 886 (1203), UL E10444, CSA C22.2 NO. 25, C22.2 NO. 30, CSA
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Taper Threaded Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; 2 Inch Small End Trade Size; 3-1/2 Inch Large End Trade Size; UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class I Zone 1 and 2 Group Iia Iib + H2, Class III Enclosure; Constructional Feature Explosionproof/Dust Ignitionproof; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; RB Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Reducer Bushing
• Unspsc: 39121312
• UPC 12 Digit: 781381736435
• SKU Name: app rb350200

Resources

• Manufacturer Spec Sheet
