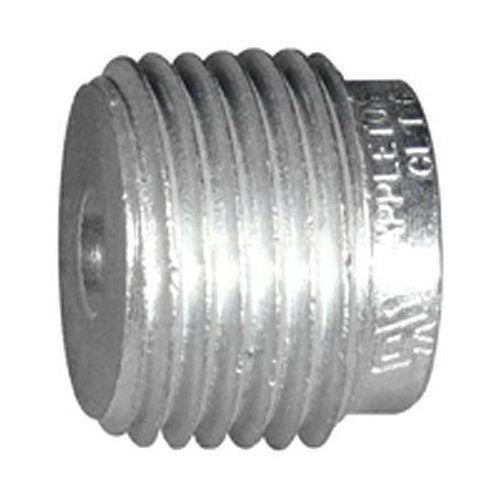

Appleton RB350-250A 3-1/2-2-1/2 Reducing Bushing

Overview

Appleton RB350-250A 3-1/2-2-1/2 Reducing Bushing

Product Specifications

• UPC: 78138173664
• Additional Information: Finish Natural; Used On Rigid Conduit/IMC
• Catalog Number: RB350-250A
• Model: RB
• Type: Threaded
• Large End Trade Size: 3-1/2 Inch
• Small End Trade Size: 2-1/2 Inch
• Enclosure: Class I Group A B C D, Class II Group E F G, Class III
• Material: Aluminum
• Approval: UL 886, CSA C22.2
• Catalog Description: STANDARD: UL, CSA, SIZE: 3.50 TO 2.50IN, MATERIAL: ALUMINUM
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Taper Threaded Type; Natural Aluminum Material; 2-1/2 Inch Small End Trade Size; 3-1/2 Inch Large End Trade Size; UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class I Zone 1 and 2 Group Iia Iib + H2, Class III Enclosure; Constructional Feature Explosionproof/Dust Ignitionproof; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; RB Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Reducer Bushing
• Unspsc: 39121312
• UPC 12 Digit: 781381736640
• SKU Name: app rb350250a

Resources

• Manufacturer Spec Sheet
