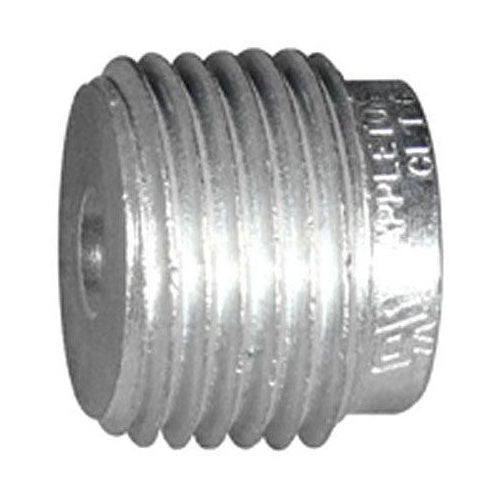

Appleton RB500-350 5-3-1/2 Reducing Bushing

Overview

Appleton RB500-350 5-3-1/2 Reducing Bushing

Product Specifications

• UPC: 78138173645
• Additional Information: Finish Zinc Electroplated/Chromate/Epoxy Powder Coated; Used On Rigid Conduit/IMC
• Catalog Number: RB500-350
• Model: RB
• Type: Threaded
• Large End Trade Size: 5 Inch
• Small End Trade Size: 3-1/2 Inch
• Enclosure: Class I Group A B C D, Class II Group E F G, Class III
• Material: Malleable Iron
• Approval: UL 886, CSA C22.2
• Catalog Description: CONDUIT REDUCER BUSHING, TYPE THREADED, LARGE END TRADE SIZE 5 INCH, SMALL END TRADE SIZE 3-1/2 INCH, ENCLOSURE CLASS I GROUP C D, CLASS II GROUP E F G, CLASS III, MATERIAL MALLEABLE IRON, APPROVAL UL 886, CSA C22.2, FINISH ZINC ELECTROPLATED/CHROMATE/EPOXY POWDER COATED, USED ON RIGID CONDUIT/IMC
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Taper Threaded Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; 3-1/2 Inch Small End Trade Size; 5 Inch Large End Trade Size; UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; Constructional Feature Explosionproof/Dust Ignitionproof; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; RB Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Reducer Bushing
• Unspsc: 39121312
• UPC 12 Digit: 781381736459
• SKU Name: app rb500350
