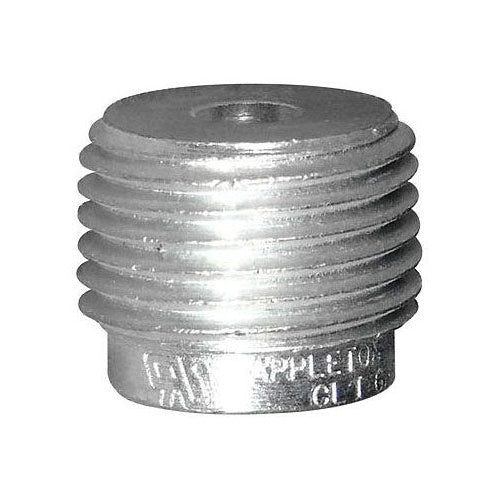

Appleton RB50-13 Reducing Bushing

Overview

Appleton RB50-13 Reducing Bushing

Product Specifications

• UPC: 78138173633
• Installation: THREADED
• Catalog Number: RB50-13
• Brand Name: Appleton.
• Large End Trade Size: 1/2 INCH
• Small End Trade Size: 1/8 INCH
• Material: STEEL
• Standard Package: 500
• Approval: CSA
• Used On: RIGID CONDUIT, IMC
• Catalog Description: REDUCING BUSHING, SIZE: 1/2 X 1/8 IN, MATERIAL: STEEL, FINISH: ZINC ELECTROPLATE, CONNECTION: NPT, STANDARD: CLASS I: GROUPS A, B, C, D, CLASS II: GROUPS E, F, G, CLASS III, UL 886 (1203), UL E10444, CSA C22.2 NO. 25, C22.2 NO. 30, CSA 065181, FOR REDUCING CONDUIT ENTRIES TO A SMALLER SIZE IN THREADED RIGID AND IMC CONDUIT SYSTEMS
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Taper Threaded Type; Zinc Electroplated Steel Material; 1/8 Inch Small End Trade Size; 1/2 Inch Large End Trade Size; UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; Constructional Feature Explosionproof/Dust Ignitionproof; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; RB Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Reducer Bushing
• Unspsc: 39121312
• UPC 12 Digit: 781381736336
• SKU Name: app rb5013
