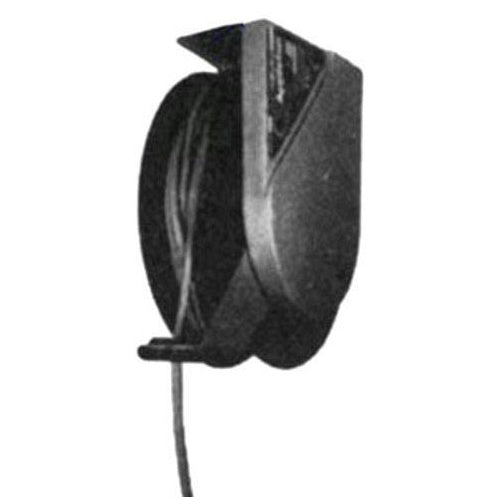

Appleton RL5440 45 Ft 14-4 Reelite Assembly

Overview

Appleton RL5440 45 Ft 14-4 Reelite Assembly

Product Specifications

• UPC: 78138167276
• Enclosure Finish: Gray Hammer Epoxy/Polyester Powder Coated
• Mounting: Ceiling/Wall
• Application: Commercial, Industrial
• Approval: UL, CSA
• Catalog Number: RL5440
• Model: RL5000
• Type: Reel with Cable
• Voltage Rating: 250 VAC
• Current Rating: 11 Ampere
• Cable Type: 14/4 SJOW-A
• Cable Length: 45 Ft
• Enclosure Material: Steel
• Catalog Description: PORTABLE GROUNDED CORD REEL WITH LOCKING RATCHET, CABLE TYPE: SJOOW-A, CABLE ACTIVE LENGTH: 45 FT, VOLTAGE RATING: 250 VAC, REEL FRAME: STEEL, AMPERAGE RATING: 11 AMP, CORD SIZE: 14 - 4 AWG, FINISH: GRAY HAMMER EPOXY/POLYESTER POWDER COAT,
• Category: Retractable Cable Reels
• Full Technical Description: Reel With Cable, Heavy Duty Type; 45 Foot Cable Length; 14/4 AWG SJOOW-A Cable Type; Steel Enclosure Material; UL, CSA Approval; Ordinary Location, Commercial/Industrial Application; 250 Volt AC Voltage Rating; Ceiling/Wall Mounting; 11 Amp Current Rating; Gray Hammer Epoxy/Polyester Powder Coated Enclosure Finish; Applicable Standard Nec/Cec; RL5000 Model
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Industrial Cable Retracting Reel
• Unspsc: 26121635
• UPC 12 Digit: 781381672764
• SKU Name: app rl5440

Resources

• Manufacturer Spec Sheet
