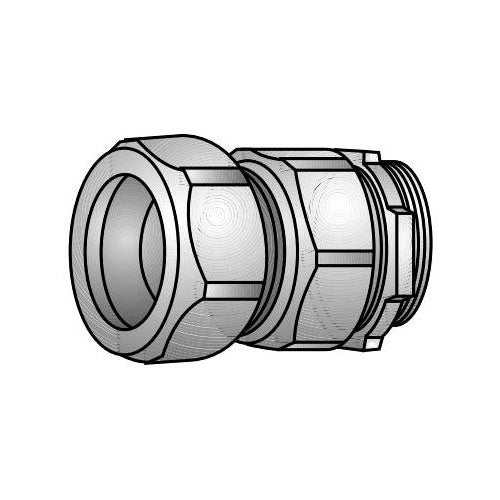

Appleton RNTC-150 1-1/2" No-Thread Conduit Connector

Overview

Appleton RNTC-150 1-1/2" No-Thread Conduit Connector

Product Specifications

• UPC: 78138166210
• Material: Malleable Iron
• Constructional Feature: Concrete-Tight
• Approval: UL 514B, CSA C22.2
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard NEMA FB-1
• Catalog Number: RNTC-150
• Model: RNTC
• Type: Compression, Threadless
• Throat Type: Insulated
• Trade Size: 1-1/2 Inch
• Diameter: 2.69 Inch
• Length: 2.01 Inch
• Thread Length: 0.63 Inch
• Catalog Description: INSULATED COMPRESSION CONNECTOR, SIZE: 1-1/2 IN, CONNECTION: MALE THREADED X COMPRESSION, MATERIAL: MALLEABLE IRON AND STEEL, LENGTH: 2.01 IN, THREAD LENGTH: 0.63 IN, DIAMETER: 1.88 IN, STANDARD: UL 514B, NEMA FB-1, FOR USE TO SECURE AND TERMINATE STEEL EMT TO KNOCKOUTS AND CONCRETE TIGHT BOX
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Compression, Threadless Type; Zinc Electroplated Malleable Iron Material; 2.01 Inch; Imc/Rigid Metal Conduit Used on; 0.63 Inch Thread Length; UL 514B, CSA C22.2 Approval; 2.63 Inch Diameter; 1-1/2 Inch Trade Size; Concrete Tight; Insulated Throat Type; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Conduit Connector
• Unspsc: 39121311
• UPC 12 Digit: 781381662109
• SKU Name: app rntc150

Resources

• Manufacturer Spec Sheet
