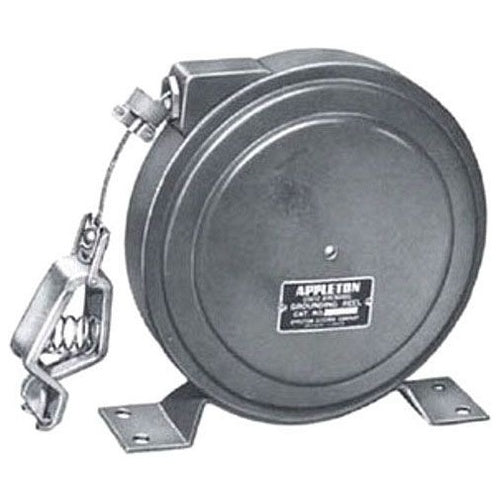

Appleton SD-11Y Reelite

Overview

Appleton SD-11Y Reelite

Product Specifications

• UPC: 78138166900
• Cord Size: 3/32 INCH
• Cord Length: 50 FT
• Application: BARGE, FUEL TRANSFER TRUCK, GRAIN ELEVATOR, HAZARDOUS MAINTENANCE AREA
• Additional Information: (4) 13/32 INCH DIA MOUNTING HOLE; 1 OHM DC RESISTANCE; WITH GROUNDING CLAMP
• Catalog Number: SD-11Y
• Brand Name: Reelites.
• Drive Type: SPRING
• Size: 8.5 INCH OD X 8.69 INCH H
• Material: STEEL
• Finish: EPOXY POWDER COATED
• Mounting: BASE, CEILING, WALL
• Cord Type: GALVANIZED STEEL
• Catalog Description: REELITES STATIC DISCHARGE CABLE REEL, CABLE ACTIVE LENGTH: 50 FT, REEL FRAME: STEEL, AMPERAGE RATING: 100 AMP, CORD SIZE: 3/32 IN, FINISH: EPOXY POWDER COAT, FOR FUEL-TRANSFER TRUCKS, BARGES, DOCK SIDE LOADING FACILITIES AND GRAIN ELEVATOR
• Category: Retractable Cable Reels
• Full Technical Description: Reel With Cable Type; Galvanized Steel Material; Red Epoxy/Polyester Powder Coated Finish; 50 Foot Cable Length; Barge, Fuel Transfer Truck, Grain Elevator, Hazardous Maintenance Area Application; REELITES[TM] Brand; DC Resistance 1 Ohm; Size 9 Inch Width X 3.13 Inch Depth X 8.69 Inch Height; Includes Grounding Clamp; Applicable Standard Nec/Cec; SD Model
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Cable Retracting Reel
• Unspsc: 26121635
• UPC 12 Digit: 781381669009
• SKU Name: app sd11y

Resources

• Manufacturer Spec Sheet
