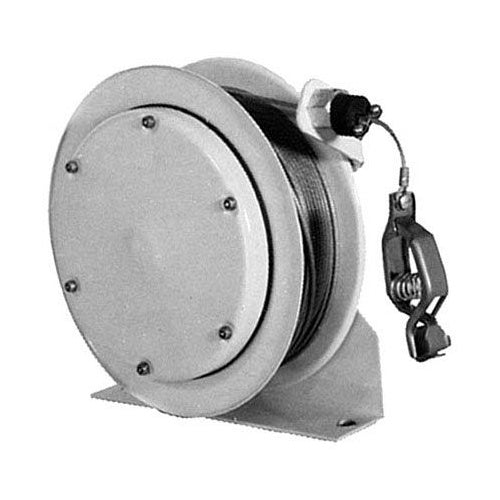

Appleton SD-50A Static Discharge Grd Cable Reel

Overview

Appleton SD-50A Static Discharge Grd Cable Reel

Product Specifications

• UPC: 78138147384
• Additional Information: DC Resistance 1 Ohm; Cable Size 3/32 Inch; Size 7.88 Inch OD x 8.5 Inch Height
• Catalog Number: SD-50A
• Brand Name: Reelites[R]
• Model: SD
• Type: Reel with Cable
• Cable Length: 50 Ft
• Material: Steel
• Finish: Yellow Epoxy/Polyester Powder Coated
• Application: Barge, Fuel Transfer Truck, Grain Elevator, Hazardous Maintenance Area
• Catalog Description: STATIC DISCHARGE REEL, TYPE REEL WITH CABLE, CURRENT RATING 100 AMPERE, CABLE LENGTH 50 FT/15.2 M, ENCLOSURE MATERIAL STEEL, ENCLOSURE FINISH GALVANIZED, APPLICATION FUEL-TRANSFER TRUCK, BARGE, DOCK SIDE LOADING FACILITY, GRAIN ELEVATOR, HAZARDOUS AREA, RESISTANCE 1 OHM DC
• Category: Retractable Cable Reels
• Full Technical Description: Reel With Cable Type; Galvanized Steel Material; Yellow Epoxy/Polyester Powder Coated Finish; 50 Foot Cable Length; Barge, Fuel Transfer Truck, Grain Elevator, Hazardous Maintenance Area Application; REELITES[TM] Brand; DC Resistance 1 Ohm; Size 9 Inch Width X 3.75 Inch Depth X 9.63 Inch Height; Includes Grounding Clamp; Applicable Standard Nec/Cec; SD Model
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Cable Retracting Reel
• Unspsc: 26121635
• UPC 12 Digit: 781381473842
• SKU Name: app sd50a

Resources

• Manufacturer Spec Sheet
