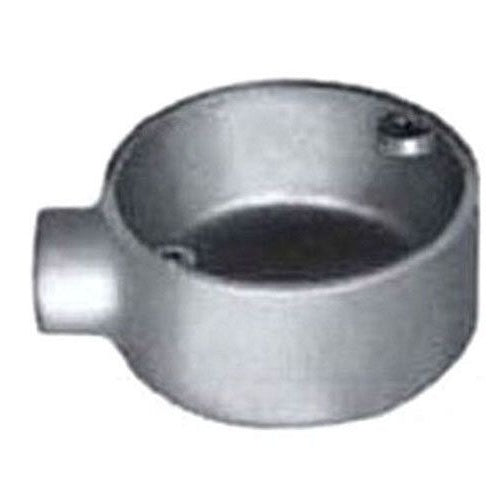

Appleton SEH-75 3/4" Junction Unilet

Overview

Appleton SEH-75 3/4" Junction Unilet

Product Specifications

• UPC: 78138166975
• Shape: Round
• Material: Malleable Iron
• Finish: Zinc Electroplated/Chromate/Epoxy Powder Coated
• Approval: UL 514A
• Additional Information: Capacity 18 Cu Inch
• Catalog Number: SEH-75
• Brand Name: Unilet[R]
• Model: SEH
• Type: Tapped
• Diameter: 3.5 Inch
• Number Of Hubs: 1
• Hub Location: Side
• Hub Size: 3/4 Inch
• Catalog Description: UNILETS OUTLET BOX, NUMBER OF OUTLET: 1, MATERIAL: MALLEABLE IRON, SIZE: 3/4 IN, CABLE ENTRY: (1) 3/4 IN SEH HUB, CUBIC CAPACITY: 18 CU-IN, KNOCKOUTS: NO, HEIGHT: 4 IN, WIDTH: 4 IN, DEPTH: 1.69 IN, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), STANDARD: UL 514A , UL FILE NUMBER E2527, FOR USE WITH THREADED METAL CONDUIT AND IMC
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Tapped Type; Malleable Iron Material; Zinc Electroplated/Chromate/Epoxy Powder Coated Finish; 1.88 Inch; Round Shape; 3/4 Inch Hub Size; 1 Hub(S); UL 514A, CSA C22.2 Approval; 3-1/2 Inch Diameter; Blank Cover Type; Screw Mounting Hardware; Side Hub Location; UNILETS[R] Brand; Capacity 18 Cubic Inch; Applicable Standard Nec/Cec; SEH Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Cast Round Outlet Box
• Unspsc: 39121308
• UPC 12 Digit: 781381669757
• SKU Name: app seh75

Resources

• Manufacturer Spec Sheet
