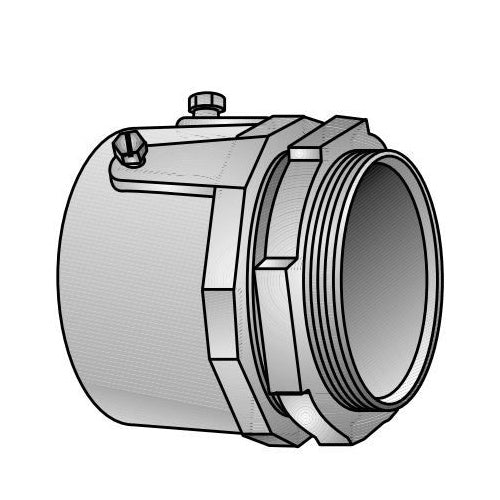

Appleton SNTC-300 3" Set-Screw Conduit Connector

Overview

Appleton SNTC-300 3" Set-Screw Conduit Connector

Product Specifications

• UPC: 78138112109
• Material: Malleable Iron
• Constructional Feature: Concrete-Tight
• Approval: UL 514B, CSA C22.2
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard NEMA FB-1
• Catalog Number: SNTC-300
• Model: SNTC
• Type: Set Screw, Threadless
• Throat Type: Non-Insulated
• Trade Size: 3 Inch
• Diameter: 4 Inch
• Length: 3.25 Inch
• Thread Length: 1 Inch
• Catalog Description: SET-SCREW CONNECTOR, SIZE: 3 IN, CONNECTION: MALE THREADED X SET-SCREW, MATERIAL: MALLEABLE IRON AND STEEL, LENGTH: 3-1/4 IN, THREAD LENGTH: 1 IN, DIAMETER: 4 IN, STANDARD: UL 514B, NEMA FB-1, USED TO SECURE AND TERMINATE RIGID METAL CONDUIT AND IMC TO ENCLOSURES
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Set Screw, Threadless Type; Zinc Electroplated Malleable Iron Material; 3.38 Inch; Imc/Rigid Metal Conduit Used on; 1 Inch Thread Length; UL 514B, CSA C22.2 Approval; 4.25 Inch Diameter; 3 Inch Trade Size; Concrete Tight; Non-Insulated Throat Type; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Conduit Connector
• Unspsc: 39121311
• UPC 12 Digit: 781381121095
• SKU Name: app sntc300

Resources

• Manufacturer Spec Sheet
