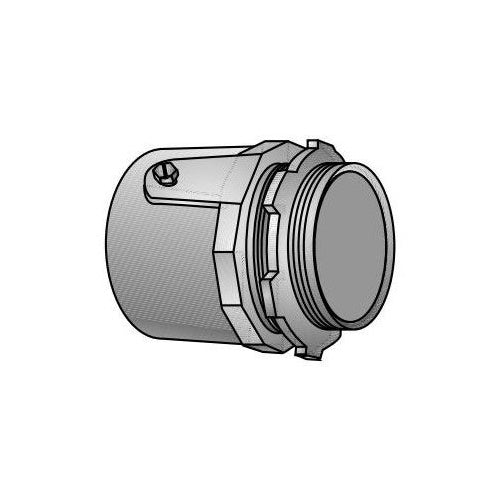

Appleton SRNTC-350 3-1/2" Insulated Set-Screw Conduit Connector

Overview

Appleton SRNTC-350 3-1/2" Insulated Set-Screw Conduit Connector

Product Specifications

• UPC: 78138112148
• Material: Malleable Iron
• Constructional Feature: Concrete-Tight
• Approval: UL 514B, CSA C22.2
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard NEMA FB-1
• Catalog Number: SRNTC-350
• Model: SRNTC
• Type: Set Screw, Threadless
• Throat Type: Insulated
• Trade Size: 3-1/2 Inch
• Diameter: 4.5 Inch
• Length: 3.69 Inch
• Thread Length: 1 Inch
• Catalog Description: IMC/RIGID CONDUIT CONNECTOR, TYPE SET SCREW, THREADLESS, THROAT TYPE INSULATED, TRADE SIZE 3-1/2 INCH, DIAMETER 4.5 INCH, LENGTH 3.69 INCH, THREAD LENGTH 1 INCH, MATERIAL MALLEABLE IRON, CONSTRUCTIONAL FEATURE CONCRETE-TIGHT, STANDARD PACKAGE 1, APPROVAL UL 514B, USED ON IMC/RIGID CONDUIT, APPLICABLE STANDARD NEMA FB-1
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Set Screw, Threadless Type; Zinc Electroplated Malleable Iron Material; 3.88 Inch; Imc/Rigid Metal Conduit Used on; 1.13 Inch Thread Length; UL 514B, CSA C22.2 Approval; 4.75 Inch Diameter; 3-1/2 Inch Trade Size; Concrete Tight; Insulated Throat Type; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Conduit Connector
• Unspsc: 39121311
• UPC 12 Digit: 781381121484
• SKU Name: app srntc350

Resources

• Manufacturer Spec Sheet
