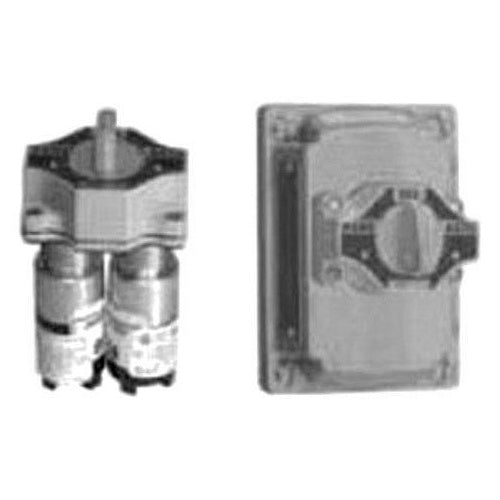

Appleton SSBAS23 3-Position 4Ckt Momentary Right Selector Switch

Overview

Appleton SSBAS23 3-Position 4Ckt Momentary Right Selector Switch

Product Specifications

• UPC: 78138163441
• Throw: Left-Center-Right
• Enclosure Material: Copper-Free Aluminum
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G
• Approval: UL 508/698/1203
• Additional Information: Number of Circuit 4
• Catalog Number: SSBAS23
• Model: SS
• Type: Knob
• Size: 1/2 Inch NPSM
• Contact Rating: 600 VAC 10 Ampere
• Operation Type: Maintained/Momentary
• Contact Configuration: 2NO-2NC
• Number Of Positions: 3
• Catalog Description: CONTENDER EDKB SERIES 4 CIRCUIT SELECTOR SWITCH ASSEMBLY, NUMBER OF STEPS: 3, CONTACT RATING: 10 AMP AT 600 VAC, ENCLOSURE: NEMA 3, 7CD, 9EFG, MOUNTING: SURFACE MOUNT WITH 1/2 IN NPSM, OPERATION: MOMENTARY, MATERIAL: MALLEABLE IRON BODY AND COVER, STANDARD: CLASS I, DIVISION 1, GROUPS C, D CLASS I, DIVISION 2, GROUPS B, C, D, CLASS II, DIVISION 1 AND 2, GROUPS E, F, G, CLASS III, FOR CONJUNCTION WITH CONTACTORS OR MAGNETIC STARTERS FOR REMOTE CONTROL OF MOTORS
• Category: Selector Switch Complete Assemblies
• Full Technical Description: Maintained/Spring Return/Momentary Operation Type; Malleable Iron Enclosure Material; 600 Volt AC 10 Amp Contact Rating; UL 508/698/1203, CSA C22.2 Approval; Class I Div 1 Group C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG Enclosure; 3 Position(S); Natural Copper-Free Aluminum Actuator Material; Left-Center-Right Throw; Legend Hand/Off/Auto; Number of Circuits 4; Material Nylon (CAM), Sealed Phenolic Contact (Block); Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Non Illuminated Selector Switch
• Unspsc: 39122217
• UPC 12 Digit: 781381634410
• SKU Name: app ssbas23
