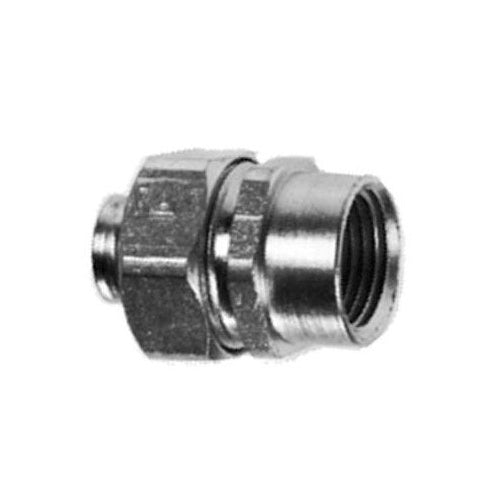

Appleton ST-200F 2" Liquidtight Female Flex Connector

Overview

Appleton ST-200F 2" Liquidtight Female Flex Connector

Product Specifications

• UPC: 78138146333
• Catalog Number: ST-200F
• Model: ST
• Type: Straight Female
• Trade Size: 2 Inch
• Material: Zinc Electroplated Chromate/Epoxy Powder Coated Malleable Iron Body, Aluminum Ferrule
• Approval: UL 514B, CSA C22.2
• Used On: Flexible Metallic Liquidtight Conduit
• Additional Information: Size 3.19 Inch Dia
• Catalog Description: APPLETON ST SERIES FEMALE LIQUIDTIGHT CONNECTOR WITH THREADED HUB, SIZE: 2 IN, CONNECTION: THREADED X COMPRESSION, MATERIAL: MALLEABLE IRON, FINISH: CHROMATE, EPOXY POWDER COAT/ZINC ELECTROPLATED, DIMENSIONS: 2.5 IN LENGTH X 2.63 IN HEIGHT, THREAD LENGTH: 1.12 IN, STANDARD: CLASS I, DIVISION 2, UL 514B, E14814, CSA C22.2 NO. 18.3, 065178, NEMA FB-1, FOR LIQUIDTIGHT FLEXIBLE METAL CONDUIT WHEN MAKING CONNECTION TO THREADED RIGID CONDUIT AND IMC
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Female, Straight Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Aluminum (Ferrule) Material; Liquid Tight Flexible Metal Conduit Used on; UL 514B, CSA C22.2 Approval; 2 Inch Trade Size; Enclosure Rating Class I Div 2, Class I Zone 2, Class II Div 1 and 2, Class III Div 1 and 2; Includes Threaded Hub; Application Heavy Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1; ST-F Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 781381463331
• SKU Name: app st200f
