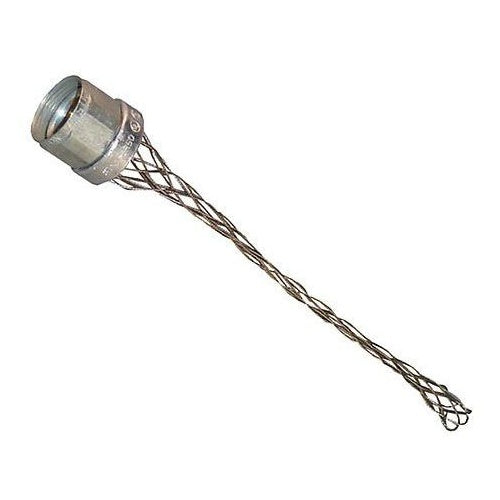

Appleton ST-250FSR 2-1/2" Liquidtight Flex Con

Overview

Appleton ST-250FSR 2-1/2" Liquidtight Flex Con

Product Specifications

• UPC: 78138150153
• Approval: UL 514-B, CSA C22.2
• Used On: FLEXIBLE METALLIC CONDUIT
• Additional Information: APPLICABLE STANDARD NEC 501-4(B), NEC 502-4(A)(2), NEC 503-3(A)
• Catalog Number: ST-250FSR
• Brand Name: Appleton[R]
• Model: ST
• Trade Size: 2-1/2 INCH
• Connector Type: FEMALE STRAIGHT
• Connector Material: ZINC ELECTROPLATED DICHROMATE ALUMINUM POLYMER ENAMELED MALLEABLE IRON
• Mesh Material: STAINLESS STEEL
• Standard Package: 5
• Catalog Description: LIQUIDTIGHT FLEXIBLE CONDUIT CONNECTOR AND WIRE MESH, TRADE SIZE 2-1/2 INCH, CONNECTOR TYPE STRAIGHT FEMALE, CONNECTOR MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON, THROAT TYPE NON-INSULATED, MESH MATERIAL STAINLESS STEEL, STANDARD PACKAGE 5, APPROVAL UL 514B, CSA C22.2, USED ON LIQUIDTIGHT FLEXIBLE METAL CONDUIT, APPLICABLE STANDARD NEMA FB-1, APPLICATION COMMERCIAL, SIZE 3.94 INCH DIA, THREAD LENGTH 1.06 INCH
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Liquid Tight Flexible Metal Conduit Used on; UL 514B, CSA C22.2 Approval; Straight Female Connector Type; 2-1/2 Inch Trade Size; Non-Insulated Throat Type; Stainless Steel Mesh Material; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Connector Material; Outside Diameter 2.84 to 2.88 Inch; Enclosure Rating Class I Div 2, Class I Zone 2, Class II Div 1 and 2, Class III Div 1 and 2; Includes Threaded Hub; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1; ST-FSR Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Liquidtight Flexible Conduit Connector with Grip
• Unspsc: 39121420
• UPC 12 Digit: 781381501538
• SKU Name: app st250fsr

Resources

• Manufacturer Spec Sheet
