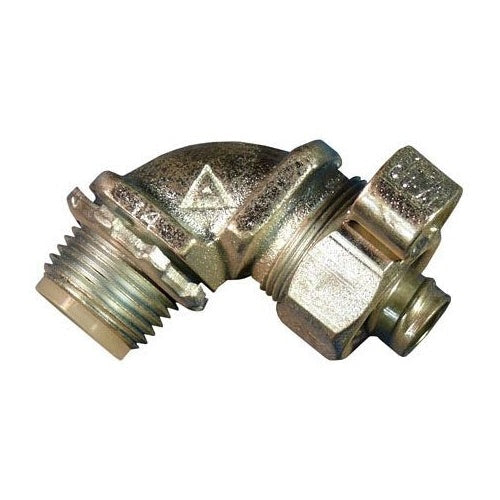

Appleton STB-9038L 3/8" 90D Insulated Lfmc Connector

Overview

Appleton STB-9038L 3/8" 90D Insulated Lfmc Connector

Product Specifications

• Catalog Description: LIQUIDTIGHT FLEXIBLE CONDUIT CONNECTOR, TYPE 90 DEG, THROAT TYPE INSULATED, TRADE SIZE 3/8 INCH (FLEX), 1/2 INCH (HUB), MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON, APPROVAL UL 514B, CSA C22.2, USED ON LIQUIDTIGHT FLEXIBLE METAL CONDUIT, APPLICABLE STANDARD NEMA FB-1, APPLICATION COMMERCIAL, SIZE 1.13 INCH DIA, THREAD LENGTH 0.63 INCH, GROUNDING LUG WIRE SIZE 14 TO 4 AWG, WEIGHT 26 LB
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 3-Piece, 90 Degree Type; Zinc Electroplated Steel (Body/Compression Nut) Material; Liquid Tight Flexible Metal Conduit Used on; UL 467/514B, CSA C22.2 Approval; 3/8 Inch (Flexible), 1/2 Inch (Hub) Trade Size; Insulated Throat Type; Liquidtight ST[TM] Brand; Turning Radius Gland Nut Size 1.08 Inch; Grounding Lug Wire Size 14 to 4 AWG; Enclosure Rating Class I Div 2, Class I Zone 2, Class II Div 1 and 2, Class III Div 1 and 2; Includes External Grounding Lug; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1; STB-L Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 781381403672
• SKU Name: app stb9038l
