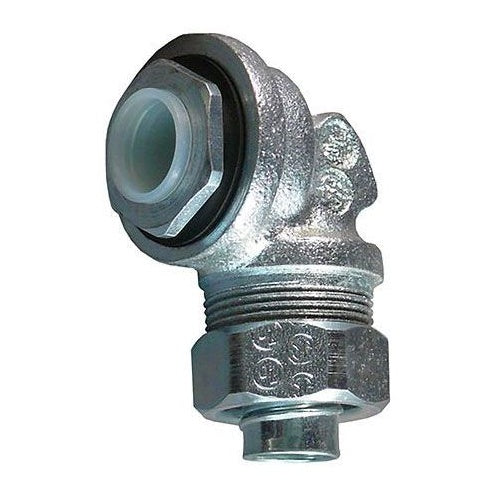

Appleton STN-90100 1" 90D Insulated Liquidtight Connector

Overview

Appleton STN-90100 1" 90D Insulated Liquidtight Connector

Product Specifications

• UPC: 78138125763
• Additional Information: Size 1.81 Inch Dia
• Catalog Number: STN-90100
• Model: STN
• Type: 90 Deg
• Throat Type: Insulated
• Trade Size: 1 Inch
• Material: Zinc Electroplated Chromate/Epoxy Powder Coated Malleable Iron Body, Aluminum Ferrule
• Approval: UL 514B, CSA C22.2
• Used On: Flexible Metallic Liquidtight Conduit
• Catalog Description: LIQUIDTIGHT FLEXIBLE CONDUIT CONNECTOR, TYPE 90 DEG, THROAT TYPE INSULATED, TRADE SIZE 1 INCH, MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON BODY, ALUMINUM FERRULE, STANDARD PACKAGE 25, APPROVAL UL 514B, CSA C22.2, USED ON LIQUIDTIGHT FLEXIBLE METAL CONDUIT, SIZE 1.81 INCH DIA, APPLICATION OILTIGHT, RAINTIGHT, WET LOCATION
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 3-Piece, 90 Degree Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Aluminum (Ferrule) Material; Liquid Tight Flexible Metal Conduit Used on; UL 514B, CSA C22.2 Approval; 1 Inch Trade Size; Insulated Throat Type; Enclosure Rating Class I Div 2, Class I Zone 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1; STN Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 781381257633
• SKU Name: app stn90100

Resources

• Manufacturer Spec Sheet
