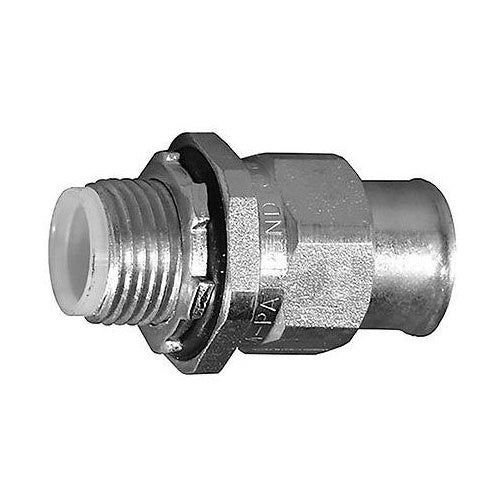

Appleton STNM-100 1" Straight Cn-P Liquidtight Connector

Overview

Appleton STNM-100 1" Straight Cn-P Liquidtight Connector

Product Specifications

• UPC: 78138123881
• Used On: Liquidtight Flexible Non-Metallic Conduit
• Additional Information: Constructional Feature Concrete Tight Seal Against Oil, Water, Dirt and Chemical; Diameter 1.94 Inch
• Catalog Number: STNM-100
• Brand Name: Appleton
• Model: STNM
• Type: Straight
• Throat Type: Insulated
• Trade Size: 1 Inch
• Material: Steel (Body/Compression Nut/Sleeve), Neoprene (O-Ring), Nylon (Ferrule)
• Approval: UL 514B, CSA C22.2
• Catalog Description: APPLETON STNM SERIES STRAIGHT LIQUIDTIGHT CONNECTOR, SIZE: 1 IN, MATERIAL: STEEL, INSULATION: INSULATED THROAT, DIMENSIONS: 2.88 IN LENGTH X 1.94 IN HEIGHT, THREAD LENGTH: 0.72 IN, STANDARD: CLASS I, DIVISION 2, UL 514B, E14814, CSA C22.2 NO. 18,
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 3-Piece, Straight Type; Zinc Plated Steel (Body/Compression Nut/Sleeve), Neoprene (O-ring), Nylon (Ferrule), Stainless Steel (Wire Mesh) Material; Type A Liquid Tight Flexible Non-Metallic Conduit Used on; UL 514B, CSA C22.2 Approval; 1 Inch Trade Size; Insulated Throat Type; Liquidtight STNM[TM] Brand; Enclosure Rating Class I Div 2, Class I Zone 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec; STNM Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 781381238816
• SKU Name: app stnm100
