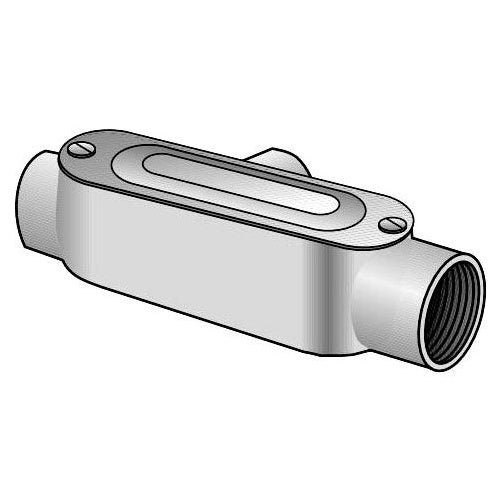

Appleton T-75ACGA Aluminum Conduit Outlet Body

Overview

Appleton T-75ACGA Aluminum Conduit Outlet Body

Product Specifications

• UPC: 78138182612
• Hub Size: 3/4 Inch
• Size: 5-5/8 Inch Length x 1-5/8 Inch Height
• Installation: Threaded
• Material: Epoxy Powder Coated Die-Cast Copper-Free Aluminum (Body), Neoprene (Gasket), Stainless Steel (Screw)
• Approval: UL 514A/B, CSA C22.2
• Used On: IMC/Rigid Conduit
• Additional Information: Capacity 7.3 Cubic Inch; Includes Cover, Gasket; Applicable Standard NEMA FB-1
• Catalog Number: T-75ACGA
• Brand Name: Appleton
• Model: T
• Access Opening: Side
• Configuration: T
• Cover Type: Plain Aluminum
• Hub Location: Tee
• Number Of Hubs: 3
• Catalog Description: FORM 85 UNILETS TYPE T CONDUIT OUTLET BODY WITH ASSEMBLED COVER AND GASKET, HUB SIZE: 3/4 IN, FORM: 85, LENGTH: 5.63 IN, HEIGHT: 1.63 IN, MATERIAL: PRESSURE CAST ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, S
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Enamel Copper-Free Aluminum (Body), Neoprene (Gasket) Material; 5.63 Inch Length X 1.63 Inch Height Size; Imc/Rigid Conduit Used on; 3/4 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL 514A, CSA C22.2 Approval; Epoxy Powder Coated Enamel Copper-Free Aluminum Cover Type; Tee Hub Location; Form 85 Form Type; Side Access Opening; UNILETS[R], Form 85[TM] Brand; Wire Size (3) 6 AWG; Enclosure Rating Class I Div 2/2.1; Includes Assembled Cover and Gasket; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381826129
• SKU Name: app t75acga
