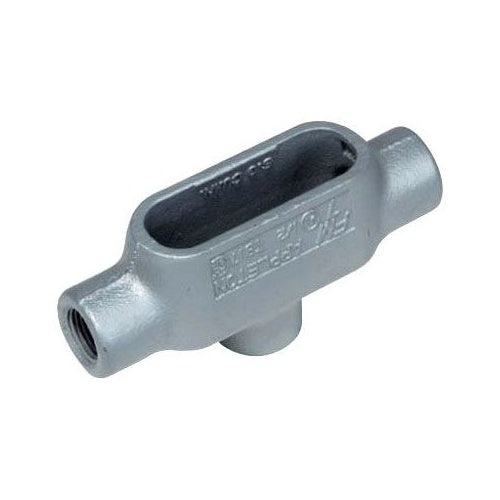

Appleton TB17SA 1/2" Aluminum TB-Type Conduit Body

Overview

Appleton TB17SA 1/2" Aluminum TB-Type Conduit Body

Product Specifications

• UPC: 78138160104
• Size: 5.63 Inch L x 1.56 Inch W x 2.63 Inch H
• Installation: Threaded
• Material: Epoxy Powder Coated Copper Free Cast Aluminum Body, Neoprene Gasket, Stainless Steel Cover Screw
• Form Type: Form 7
• Approval: UL 514A/514B, CSA C22.2, NEC, CEC
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard NEMA FB-1; Capacity 6 Cu Inch; Application Serve as Pulling Fitting, Make Bends in Conduit System, Provide Openings for Splicing, Connect and Change Direction of Conduit Run, Allow Connections for Branch Run, Permit Access to Conductor
• Catalog Number: TB17SA
• Brand Name: Unilet[R], FM7[TM]
• Access Opening: Back
• Configuration: TB
• Cover Type: Epoxy Powder Coated Copper Free Cast Aluminum
• Hub Location: Tee
• Number Of Hubs: 3
• Hub Size: 1/2 Inch
• Catalog Description: FM7 UNILETS TYPE TB CONDUIT OUTLET BODY, HUB SIZE: 1/2 IN, FORM: 7, LENGTH: 5.63 IN, WIDTH: 1.56 IN, HEIGHT: 2.63 IN, MATERIAL: ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE N
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Copper-Free Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 5.63 Inch Length X 1.56 Inch Width X 2.63 Inch Height Size; Imc/Rigid Conduit Used on; 1/2 Inch Hub Size; Threaded Installation; TB Configuration; 3 Hub(S); UL 514A/B, CSA C22.2 Approval; Tee Hub Location; Form 7 Form Type; Back Access Opening; FM7[TM] Brand; Capacity 6 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381601047
• SKU Name: app tb17sa

Resources

• Manufacturer Spec Sheet
