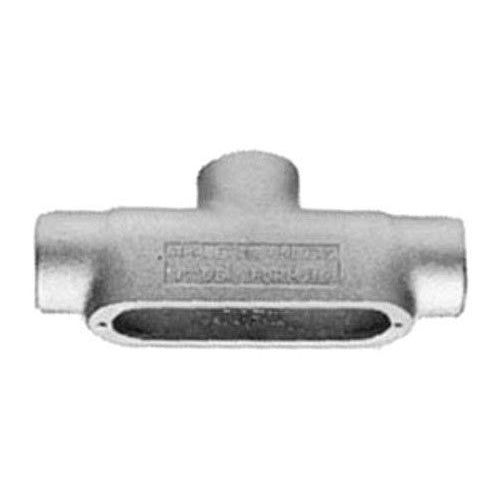

Appleton TB200A 2" Aluminum TB-Type Conduit Body

Overview

Appleton TB200A 2" Aluminum TB-Type Conduit Body

Product Specifications

• UPC: 78138132063
• Installation: Threaded
• Material: Epoxy Powder Coated Pressure Cast Copper-Free Aluminum
• Form Type: Form 85
• Approval: UL 514A, CSA C22.2, NEC
• Used On: IMC/Rigid Conduit
• Additional Information: Enclosure Rating Class I Div 2; Application Pulling Fitting, Conduit System, Splicing, Connect and Change Direction of Conduit Run, Branch Run Connection, Conductor Maintenance, Hazardous Location; Applicable Standard NEMA FB-1
• Catalog Number: TB200A
• Brand Name: Form 85[TM], UNILETS[R]
• Access Opening: Tee Back
• Configuration: TB
• Cover Type: Epoxy Powder Coated Aluminum/Malleable Iron/Steel
• Hub Location: Tee Back
• Number Of Hubs: 3
• Hub Size: 2 Inch
• Catalog Description: FORM 85 UNILETS TYPE TB CONDUIT OUTLET BODY, HUB SIZE: 2 IN, FORM: 85, LENGTH: 10.81 IN, WIDTH: 3.13 IN, MATERIAL: PRESSURE CAST ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Copper-Free Pressure Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 10.81 Inch Length X 3.13 Inch Width Size; Imc/Rigid Conduit Used on; 2 Inch Hub Size; Threaded Installation; TB Configuration; 3 Hub(S); UL 514A/B, CSA C22.2 Approval; Tee Hub Location; Form 85 Form Type; Back Access Opening; UNILETS[R], Form 85[TM] Brand; Wire Size (3) 1/0 AWG; Capacity 71 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381320634
• SKU Name: app tb200a
