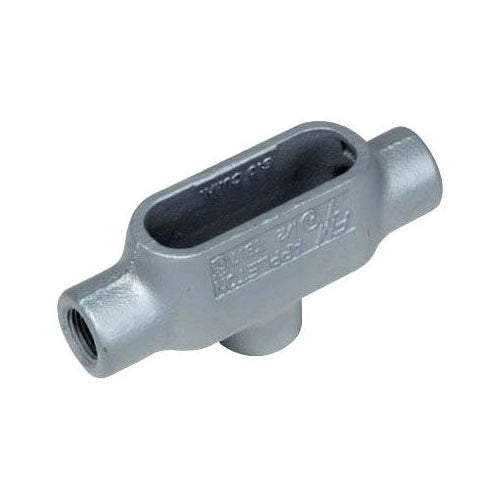

Appleton TB27SA 3/4" Aluminum TB-Type Conduit Body

Overview

Appleton TB27SA 3/4" Aluminum TB-Type Conduit Body

Product Specifications

• UPC: 78138160106
• Hub Size: 3/4 Inch
• Size: 6.25 Inch Length x 1.88 Inch Width x 2.88 Inch Height
• Installation: Threaded
• Material: Epoxy Powder Coated Copper-Free Cast Aluminum (Body), Stainless Steel (Screw)
• Form Type: Form 7
• Approval: UL 514A/B, CSA C22.2, NEC, CEC
• Used On: IMC/Rigid Conduit
• Additional Information: Capacity 10 Cubic Inch; Application Pulling Fitting, Conduit System, Splicing, Connect and Change Direction of Conduit Run, Branch Run Connection, Conductor Maintenance; Applicable Standard NEMA FB-1
• Catalog Number: TB27SA
• Brand Name: Appleton
• Model: TB
• Access Opening: Back
• Configuration: TB
• Cover Type: Epoxy Powder Coated Copper-Free Cast Aluminum
• Hub Location: Tee Back
• Number Of Hubs: 3
• Catalog Description: FM7 UNILETS TYPE TB CONDUIT OUTLET BODY, HUB SIZE: 3/4 IN, FORM: 7, LENGTH: 6-1/4 IN, WIDTH: 1.88 IN, HEIGHT: 2.88 IN, MATERIAL: ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Copper-Free Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 6.25 Inch Length X 1.88 Inch Width X 2.88 Inch Height Size; Imc/Rigid Conduit Used on; 3/4 Inch Hub Size; Threaded Installation; TB Configuration; 3 Hub(S); UL 514A/B, CSA C22.2 Approval; Tee Hub Location; Form 7 Form Type; Back Access Opening; FM7[TM] Brand; Wire Size (3) 6 AWG; Capacity 10 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381601061
• SKU Name: app tb27sa

Resources

• Manufacturer Spec Sheet
