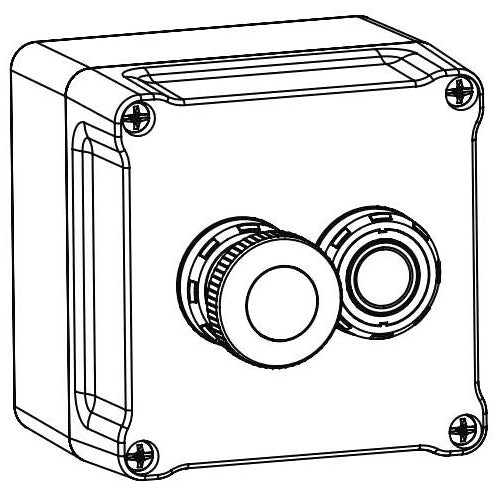

Appleton U21W2D9A5 Polyester Control Station

Overview

Appleton U21W2D9A5 Polyester Control Station

Product Specifications

• Catalog Description: EMERGENCY STOP AND PUSHBUTTON CONTROL STATION, TYPE BOTTOM, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, CONTACT CONFIGURATION 1NO-1NC, HUB SIZE (2) M20, ENCLOSURE MATERIAL BLACK FINISHED FIBERGLASS REINFORCED POLYESTER, ENCLOSURE ZONE 1 AND 2-21 AND 22, II 2 GD, EX DE IIC/EX DEMB IIC/EX TD A21, IK10, APPROVAL CE, IEC, OVERALL SIZE 4.72 INCH W X 3.58 INCH D X 4.72 INCH H, APPLICATION HAZARDOUS LOCATION, OPERATION TYPE MOMENTARY/MAINTAINED, RAIL MOUNT, WEIGHT 2.43 LB
• Category: Control Station Complete Assemblies
• Full Technical Description: Push-Pull Emergency Stop, Pushbutton Type; Fiberglass Reinforced Polyester Material; 4.72 Inch Width X 3.58 Inch Depth X 4.72 Inch Height Size; Black Finish; 1NO-1NC Contact Configuration; 690 Volt AC 16 Amp, 220 Volt DC 6 Amp Contact Rating; UL, CSA (Canada and Us), Can/Csa C22.2 Approval; Class I Div 2 Group A B C D, Class II Group F G, Class I Zone 1, Class III, Zone 1 and 2/21 and 22, IP66/IK10 Enclosure; Momentary/Maintained Operator Type; (2) M20 Hub Cable/Conduit Entry; UNICODE[TM] 2
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Standard Industrial Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381261807
• SKU Name: app u21w2d9a5

Resources

• Manufacturer Spec Sheet
