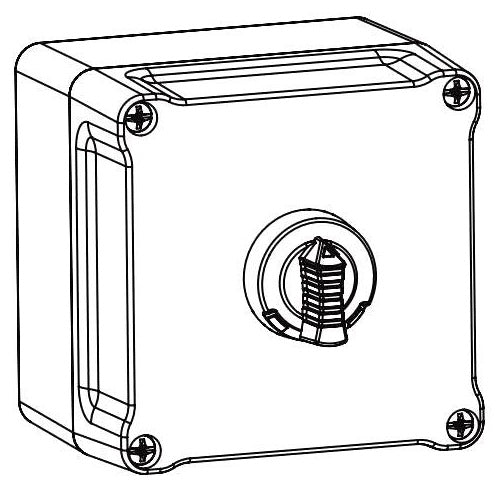

Appleton U21W2H3 Polyester Control Station

Overview

Appleton U21W2H3 Polyester Control Station

Product Specifications

• Catalog Description: ROTARY ACTUATOR CONTROL STATION, TYPE BOTTOM, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, CONTACT CONFIGURATION 1NO-1NC, HUB SIZE (2) M20, ENCLOSURE MATERIAL BLACK FINISHED FIBERGLASS REINFORCED POLYESTER, ENCLOSURE ZONE 1 AND 2-21 AND 22, II 2 GD, EX DE IIC/EX DEMB IIC/EX TD A21, IK10, APPROVAL CE, IEC, OVERALL SIZE 4.72 INCH W X 3.58 INCH D X 4.72 INCH H, APPLICATION HAZARDOUS LOCATION, OPERATION TYPE MAINTAINED, RAIL MOUNT, WEIGHT 2.2 LB
• Category: Control Station Complete Assemblies
• Full Technical Description: Bottom Type; 1NO-1NC Contact Configuration; Black Fiberglass Reinforced Polyester Enclosure Material; UL 50, CSA (Canada and Us), Can/Csa C22.2 Approval; 690 Volt AC Voltage Rating; Class I Div 2 Group A B C D, Class II Group F G, Class III, NEMA 4X, IP66 Enclosure; 16 Amp Current Rating; 2 Position(S); UNICODE[TM] 2 Brand; Entry Size (2) M20; Mounting Type DIN Rail; Temperature Rating -67 to 140 Deg F (Ambient), 167 Deg F (Surface); Includes (1) White Self-Adhesive Laminated Plastic Name Plate, (1) Brass Earth Continuity Plate, (1) Blanking Plug, (1) Cable Gland, Brass Insert; Application Hazardou
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Selector Switch Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381261876
• SKU Name: app u21w2h3

Resources

• Manufacturer Spec Sheet
