Appleton U21W2LG5 Polyester Control Station

Overview

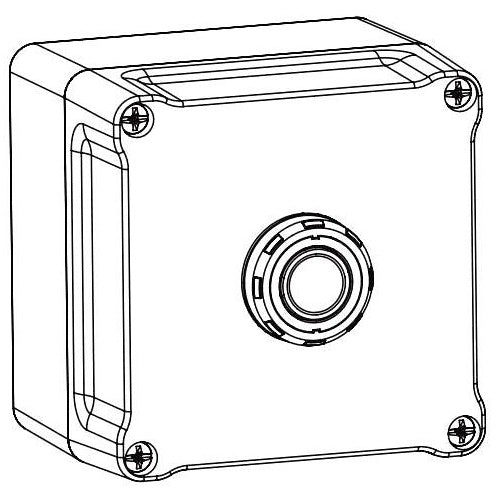

Appleton U21W2LG5 Polyester Control Station

Product Specifications

• Catalog Description: PUSHBUTTON AND PILOT LIGHT CONTROL STATION, TYPE BOTTOM, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, CONTACT CONFIGURATION 1NO, NUMBER OF PUSHBUTTONS 1, NUMBER OF PILOT LIGHTS 1, OPERATOR TYPE BUTTON, PILOT LIGHT TYPE 12 TO 254 VAC/12 TO 60 VDC GREEN LED, HUB SIZE (2) M20, ENCLOSURE MATERIAL BLACK FINISHED FIBERGLASS REINFORCED POLYESTER, ENCLOSURE ZONE 1 AND 2-21 AND 22, II 2 GD, EX DE IIC/EX DEMB IIC/EX TD A21, IK10, APPROVAL CE, IEC, OVERALL SIZE 4.72 INCH W X 3.58 INCH D X 4.72 INCH H, APPLICATION HAZARDOUS LOCATION, RAIL MOUNT, WEIGHT 2.2 LB
• Category: Control Station Complete Assemblies
• Full Technical Description: Bottom Type; 1NO Contact Configuration; (2) M20 Hub Size; Black Fiberglass Reinforced Polyester Enclosure Material; UL, CSA (Canada and Us), Can/Csa C22.2 Approval; 600 Volt AC Voltage Rating; Class I Div 2 Group A B C D, Class II Group F G, Class I Zone 1, Class III, NEMA 4X, IP66 Enclosure; 10 Amp Current Rating; Illuminated Pushbutton Operator Type; UNICODE[TM] 2 Brand; Operation Type Momentary; Operator Color Green; Mounting Type DIN Rail; Ambient Tempe
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pushbutton Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381261906
• SKU Name: app u21w2lg5

Resources

• Manufacturer Spec Sheet
