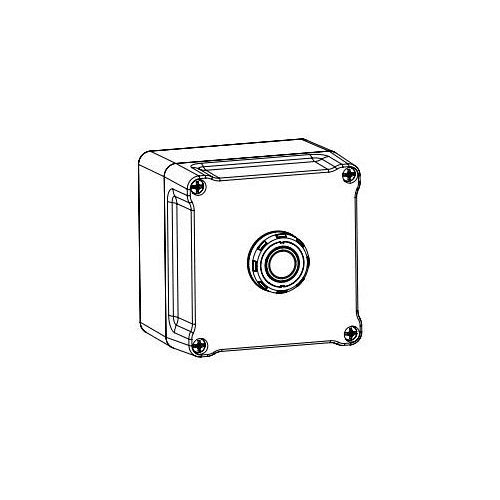

Appleton U21W4A5 Polyester Control Station

Overview

Appleton U21W4A5 Polyester Control Station

Product Specifications

• Catalog Description: PUSHBUTTON CONTROL STATION, TYPE BOTTOM, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, CONTACT CONFIGURATION 1NO, HUB SIZE (2) M25, ENCLOSURE MATERIAL BLACK FINISHED FIBERGLASS REINFORCED POLYESTER, ENCLOSURE ZONE 1 AND 2-21 AND 22, II 2 GD, EX DE IIC/EX DEMB IIC/EX TD A21, IK10, APPROVAL CE, IEC, OVERALL SIZE 4.72 INCH W X 3.58 INCH D X 4.72 INCH H, APPLICATION HAZARDOUS LOCATION, OPERATION TYPE MOMENTARY, RAIL MOUNT, WEIGHT 2.2 LB
• Category: Control Station Complete Assemblies
• Full Technical Description: Bottom Type; 1NO Contact Configuration; (2) M25 Hub Size; Black Fiberglass Reinforced Polyester Enclosure Material; UL, CSA (Canada and Us), Can/Csa C22.2 Approval; 600 Volt AC Voltage Rating; Class I Div 2 Group A B C D, Class II Group F G, Class I Zone 1, Class III, NEMA 4X, IP66 Enclosure; 10 Amp Current Rating; UNICODE[TM] 2 Brand; Operation Type Momentary; Operator Color Green; Mounting Type DIN Rail; Ambient Temperature Rating -67 to 140 Deg F; Includes (1) White Self-Adhesive Laminated Plastic Name Plate, (1) Brass Earth Continuity Plate, (1) Blanking Plug, (1) Cable Gland; Applicati
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pushbutton Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381262132
• SKU Name: app u21w4a5

Resources

• Manufacturer Spec Sheet
