Appleton U22W4PGPRA5A9 Polyester Control Station

Overview

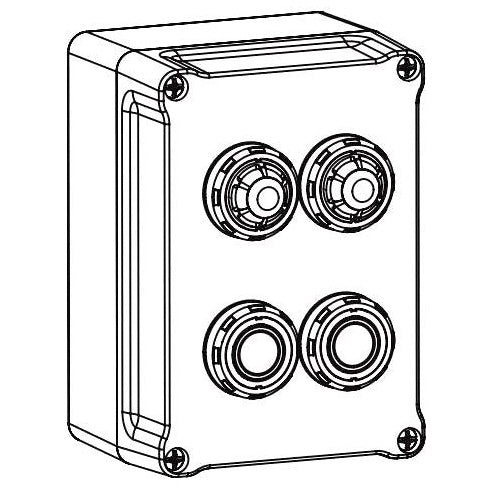

Appleton U22W4PGPRA5A9 Polyester Control Station

Product Specifications

• Catalog Description: PUSHBUTTON AND PILOT LIGHT CONTROL STATION, TYPE BOTTOM, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, CONTACT CONFIGURATION 1NO-1NC, NUMBER OF PUSHBUTTONS 2, NUMBER OF PILOT LIGHTS 2, OPERATOR TYPE BUTTON, PILOT LIGHT TYPE 12 TO 254 VAC/12 TO 60 VDC GREEN/RED LED, HUB SIZE (2) M25, ENCLOSURE MATERIAL BLACK FINISHED FIBERGLASS REINFORCED POLYESTER, ENCLOSURE ZONE 1 AND 2-21 AND 22, II 2 GD, EX DE IIC/EX DEMB IIC/EX TD A21, IK10, APPROVAL CE, IEC, OVERALL SIZE 4.72 INCH W X 3.58 INCH D X 6.69 INCH H, APPLICATION HAZARDOUS LOCATION, RAIL MOUNT, WEIGHT 2.87 LB
• Category: Control Station Complete Assemblies
• Full Technical Description: Bottom Type; 1NO-1NC Contact Configuration; (2) M25 Hub Size; Fiberglass Reinforced Polyester Enclosure Material; UL, CSA (Canada and Us), Can/Csa C22.2 Approval; 600 Volt AC Voltage Rating; Class I Div 1 Group A B C D, Class II Group F G, Class I Zone 2, Class III, NEMA 4X, IP66/IK10 Enclosure; 10 Amp Current Rating; I, O Legend; Button Operator Type; 2 Circuit(S); Size 2 Box Type; LED Pilot Light Type; 2 Pushbutton(S); 2 Pilot Light(S); UN
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pushbutton Switch and Pilot Light Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381256568
• SKU Name: app u22w4pgpra5a9

Resources

• Manufacturer Spec Sheet
