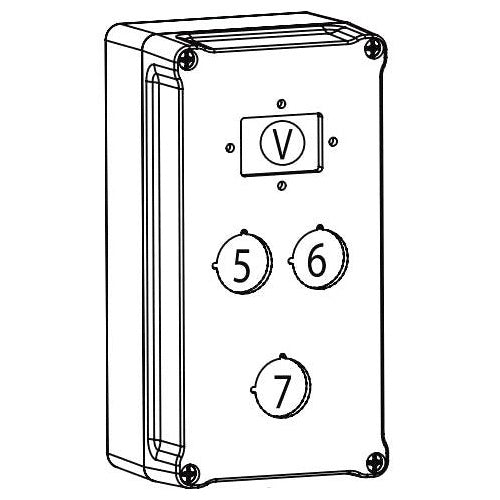

Appleton U23U324 S3 Polyester Control Station Enclosure

Overview

Appleton U23U324 S3 Polyester Control Station Enclosure

Product Specifications

• Catalog Description: CONTROL STATION ENCLOSURE, TYPE PRE-DRILLED, HEIGHT 9.06 INCH, WIDTH 4.72 INCH, DEPTH 3.58 INCH, NUMBER OF DEVICE HOLES 4, DEVICE HOLE LOCATION 1-ROW VERTICAL, 2-ROW HORIZONTAL, MATERIAL FIBERGLASS REINFORCED POLYESTER, COLOR BLACK, ENCLOSURE ZONE 1 AND 2 TO 21 AND 22, II 2 GD, EX DE IIC/EX DEMB IIC/EX TD A21, IK10, MOUNTING RAIL MOUNT, APPROVAL ATEX/IEC, HUB SIZE (2) M25 FEED THROUGH, AMMETER SIZE 48 MM W X 48 MM H, INCLUDES (1) WHITE SELF-ADHESIVE LAMINATED PLASTIC NAMEPLATE (BLACK LETTERING), (1) EARTH CONTINUITY BRASS PLATE, THREADED ENTRY, WEIGHT 2.43 LB
• Category: Control Station Enclosures
• Full Technical Description: Feed-Through Type; Black Fiberglass Reinforced Polyester (Body/Cover) Material; 4.72 Inch Width X 3.58 Inch Depth X 9.06 Inch Height Size; Unicode 2 Pre-Drilled Polyester Control Station Used on; M25 Hub Size; 2 Hub(S); UL, CSA (Canada and Us), Can/Csa C22.2 Approval; Class I Div 2 Group A B C D, Class II Group F G, Class I Zone 1, Class III, NEMA 4X, IP66 Enclosure; 4-Device Construction; UNICODE[TM] 2 Brand; Ambient Temperature Rating -67 to 158 Deg F; Includ
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Control Station Box
• Unspsc: 39121303
• UPC 12 Digit: 781381262767
• SKU Name: app u23u324

Resources

• Manufacturer Spec Sheet
