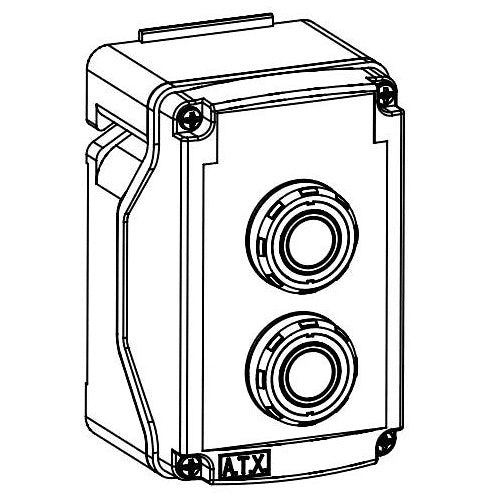

Appleton U42W2A3A3 Polyamide Control Station

Overview

Appleton U42W2A3A3 Polyamide Control Station

Product Specifications

• Catalog Description: PUSHBUTTON CONTROL STATION, TYPE BOTTOM, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, CONTACT CONFIGURATION 2NO-2NC, HUB SIZE (2) M20, ENCLOSURE MATERIAL BLACK FINISHED POLYAMIDE, ENCLOSURE ZONE 1 AND 2-21 AND 22, II 2 GD, EX DE IIC/EX DEMB IIC/EX TD A21, IP66-IK09, APPROVAL CE, IEC, OVERALL SIZE 3.54 INCH W X 1.15 INCH D X 5.87 INCH H, APPLICATION HAZARDOUS LOCATION, OPERATION TYPE MOMENTARY, RAIL MOUNT, WEIGHT 1.37 LB
• Category: Control Station Complete Assemblies
• Full Technical Description: Bottom Type; 2NO-2NC Contact Configuration; (2) M20 Hub Size; Black Polyamide Enclosure Material; 600 Volt AC Voltage Rating; Zone 1 and 2, IP66/IK09 Enclosure; 10 Amp Current Rating; Twin Pushbutton Operator Type; UNICODE[TM] 2 Brand; Operation Type Momentary; Operator Color Green and Red; Ambient Temperature Rating -4 to 131 Deg F; Includes (1) White Self-Adhesive Laminated Plastic Name Plate, (1) Blanking Plug, (1) Cable Gland, (2) Locknut; Application Hazardous Location; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pushbutton Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381255509
• SKU Name: app u42w2a3a3

Resources

• Manufacturer Spec Sheet
