Appleton U43W2PRA5A9 Polyamide Control Station

Overview

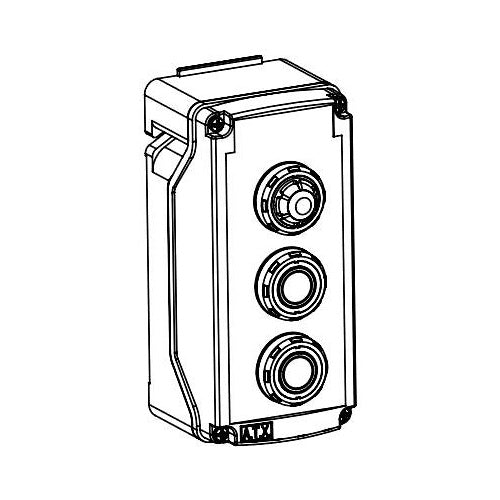

Appleton U43W2PRA5A9 Polyamide Control Station

Product Specifications

• Catalog Description: PUSHBUTTON AND PILOT LIGHT CONTROL STATION, TYPE BOTTOM, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, CONTACT CONFIGURATION 2NO, NUMBER OF PUSHBUTTONS 2, NUMBER OF PILOT LIGHTS 1, OPERATOR TYPE BUTTON, PILOT LIGHT TYPE 12 TO 254 VAC/12 TO 60 VDC RED LED, HUB SIZE (2) M20, ENCLOSURE MATERIAL BLACK FINISHED POLYAMIDE, ENCLOSURE ZONE 1 AND 2-21 AND 22, II 2 GD, EX DE IIC/EX DEMB IIC/EX TD A21, IK09, APPROVAL CE, IEC, OVERALL SIZE 3.54 INCH W X 1.15 INCH D X 5.87 INCH H, APPLICATION HAZARDOUS LOCATION, RAIL MOUNT, WEIGHT 1.72 LB
• Category: Control Station Complete Assemblies
• Full Technical Description: Bottom Type; 1NO-1NC Contact Configuration; (2) M20 Hub Size; Polyamide Enclosure Material; 600 Volt AC Voltage Rating; Class II Div 2 Gd, Zone 1 and 2/21 and 22, IP66/IK09 Enclosure; 10 Amp Current Rating; I, O Legend; Button Operator Type; 2 Circuit(S); Size 3 Box Type; Red LED Pilot Light Type; 2 Pushbutton(S); 1 Pilot Light(S); UNICODE[TM] 2 Brand; Overall Dimension 3.54 Inch Width
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pushbutton Switch and Pilot Light Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381256704
• SKU Name: app u43w2pra5a9

Resources

• Manufacturer Spec Sheet
