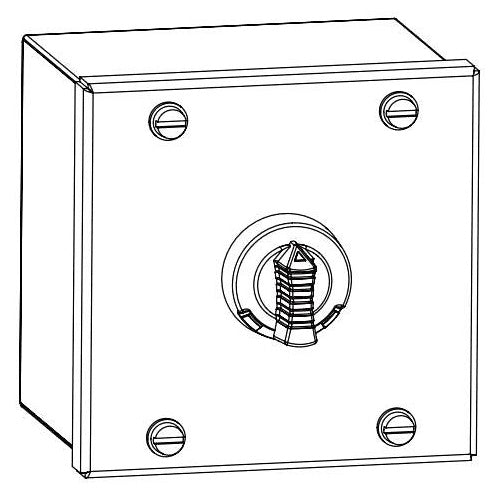

Appleton U61W2N3 Stainless-Steel Control Station

Overview

Appleton U61W2N3 Stainless-Steel Control Station

Product Specifications

• Catalog Description: ROTARY ACTUATOR SELECTOR SWITCH CONTROL STATION, TYPE BOTTOM, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, OPERATION TYPE SPRING RETURN/MAINTAINED, CONTACT CONFIGURATION 1NO-1NC, NUMBER OF POSITIONS 3, HUB SIZE (2) M20, ENCLOSURE MATERIAL 316L STAINLESS STEEL, ENCLOSURE ZONE 1 AND 2-21 AND 22, II 2 GD, EX DE IIC/EX DEMB IIC/EX TD A21, IK10, APPROVAL CE, IEC, OVERALL SIZE 5 INCH W X 3.82 INCH D X 6.3 INCH H, APPLICATION HAZARDOUS LOCATION, RAIL MOUNT
• Category: Control Station Complete Assemblies
• Full Technical Description: Bottom Type; 1NO-1NC Contact Configuration; Natural 316L Stainless Steel Enclosure Material; UL, CSA (Canada and Us), Can/Csa C22.2 Approval; 690 Volt AC Voltage Rating; Class I Div 2 Group A B C D, Class II Group F G, Class III, NEMA 4X, IP66 Enclosure; 16 Amp Current Rating; 3 Position(S); UNICODE[TM] 2 Brand; Entry Size (2) M20; Mounting Type DIN Rail; Ambient Temperature Rating -58 to 158 Deg F; Includes (1) White Self-Adhesive Laminated Plastic Name Plate, (1) Brass Earth Continuity Plate
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Selector Switch Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381257855
• SKU Name: app u61w2n3
