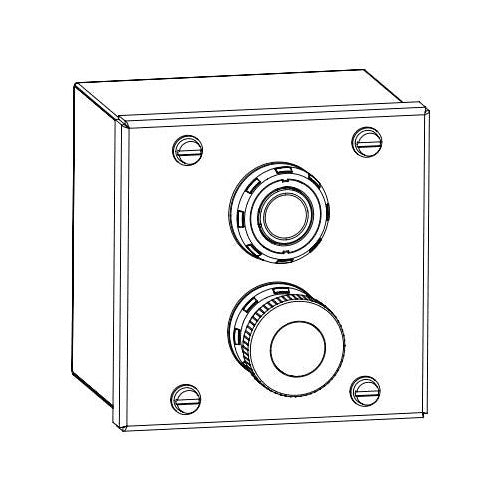

Appleton U61X3D9A5 Stainless-Steel Control Station

Overview

Appleton U61X3D9A5 Stainless-Steel Control Station

Product Specifications

• Catalog Description: EMERGENCY STOP AND PUSHBUTTON CONTROL STATION, TYPE FEED THROUGH, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, CONTACT CONFIGURATION 1NO-1NC, HUB SIZE 3/4 INCH, ENCLOSURE MATERIAL 316L STAINLESS STEEL, ENCLOSURE ZONE 1 AND 2-21 AND 22, II 2 GD, EX DE IIC/EX DEMB IIC/EX TD A21, IK10, APPROVAL CE, IEC, OVERALL SIZE 5 INCH W X 3.82 INCH D X 6.3 INCH H, APPLICATION HAZARDOUS LOCATION, OPERATION TYPE MOMENTARY/MAINTAINED, RAIL MOUNT
• Category: Control Station Complete Assemblies
• Full Technical Description: Push-Pull Emergency Stop, Pushbutton Type; 316L Stainless Steel Material; 5 Inch Width X 4.12 Inch Depth X 5 Inch Height Size; Natural Finish; 1NO-1NO Contact Configuration; 690 Volt AC 16 Amp, 220 Volt DC 6 Amp Contact Rating; Vertical Mounting; Class I Div 2 Group A B C D, Class II Group F G, Class I Zone 1, Class III, Zone 1 and 2/21 and 22, IP66/IK10 Enclosure; Momentary/Maintained Operator Type; (2) 3/4 Inch (Feed-Through) Hub Cable/Conduit Entry; UNICODE[TM] 2 Brand; Name Plate Hand-Off-Auto; Includes Internal Ground Sc
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Standard Industrial Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381259927
• SKU Name: app u61x3d9a5
