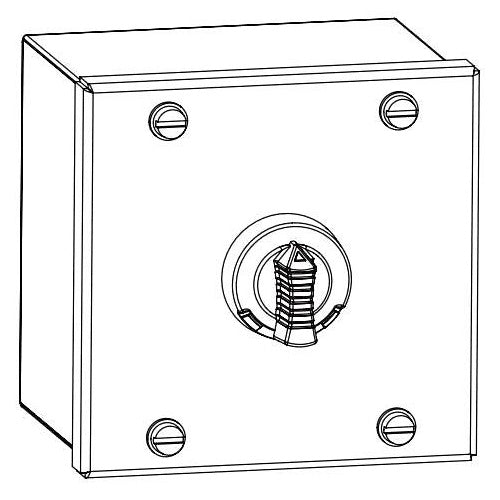

Appleton U61Z3J1 Stainless-Steel Control Station

Overview

Appleton U61Z3J1 Stainless-Steel Control Station

Product Specifications

• Catalog Description: ROTARY ACTUATOR SELECTOR SWITCH CONTROL STATION, TYPE BOTTOM, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, OPERATION TYPE MAINTAINED, CONTACT CONFIGURATION 2NO, NUMBER OF POSITIONS 3, HUB SIZE 3/4 INCH, ENCLOSURE MATERIAL 316L STAINLESS STEEL, ENCLOSURE ZONE 1 AND 2-21 AND 22, II 2 GD, EX DE IIC/EX DEMB IIC/EX TD A21, IK10, APPROVAL CE, IEC, OVERALL SIZE 5 INCH W X 3.82 INCH D X 6.3 INCH H, APPLICATION HAZARDOUS LOCATION, RAIL MOUNT
• Category: Control Station Complete Assemblies
• Full Technical Description: Bottom Type; 2NO Contact Configuration; Natural 316L Stainless Steel Enclosure Material; UL, CSA (Canada and Us), Can/Csa C22.2 Approval; 690 Volt AC Voltage Rating; Class I Div 2 Group A B C D, Class II Group F G, Class III, NEMA 4X, IP66 Enclosure; 16 Amp Current Rating; 3 Position(S); UNICODE[TM] 2 Brand; Entry Size (1) 3/4 Inch; Mounting Type DIN Rail; Ambient Temperature Rating -58 to 158 Deg F; Includes (1) White Self-Adhesive Laminated Plastic Name Plate, (1) Brass Earth Continuity Plate, (1) Blanking Plug,
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Selector Switch Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381262507
• SKU Name: app u61z3j1

Resources

• Manufacturer Spec Sheet
