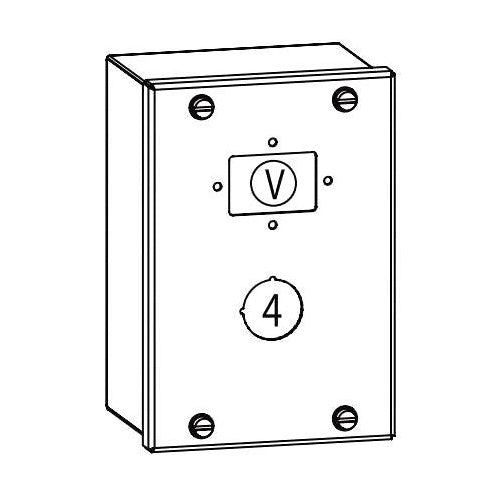

Appleton U62W426 Sz2 Stainless Control Station Enclosure

Overview

Appleton U62W426 Sz2 Stainless Control Station Enclosure

Product Specifications

• Catalog Description: CONTROL STATION ENCLOSURE, TYPE PRE-DRILLED, HEIGHT 7.36 INCH, WIDTH 5 INCH, DEPTH 3.5 INCH, NUMBER OF DEVICE HOLES 2, DEVICE HOLE LOCATION 1-ROW VERTICAL, MATERIAL 316L STAINLESS STEEL, COLOR NATURAL, ENCLOSURE ZONE 1 AND 2 TO 21 AND 22, IP66, MOUNTING RAIL MOUNT, APPROVAL ATEX/IEC, INCLUDES (1) WHITE SELF-ADHESIVE LAMINATED PLASTIC NAMEPLATE (BLACK LETTERING), CLEARANCE ENTRIES, APPLICATION HAZARDOUS LOCATION, VOLUME 219.69 CU INCH, WEIGHT 3.31 LB
• Category: Control Station Enclosures
• Full Technical Description: 2-Bottom Type; Natural 316L Stainless Steel Material; 5 Inch Width X 4.12 Inch Depth X 8.66 Inch Height Size; Unicode 2 Pre-Drilled Stainless Steel Control Station Used on; M25 Hub Size; 2 Hub(S); UL, CSA (Canada and Us) Approval; Class I Div 2 Group A B C D, Class II Group F G, Class I Zone 1, Class III, NEMA 4X, IP66 Enclosure; 2-Device Construction; UNICODE[TM] 2 Brand; Ambient Temperature Rating -58 to 158 Deg F; Includes (1) White Self-Adhesive Laminated Plastic Name Plate (Black Lettering), Clearance Entry; Application Power/Chemical/Petrochemical Plan
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Control Station Box
• Unspsc: 39121303
• UPC 12 Digit: 781381258197
• SKU Name: app u62w426

Resources

• Manufacturer Spec Sheet
