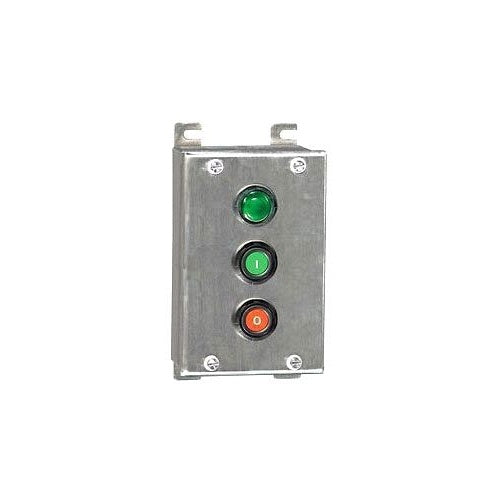

Appleton U63W4PGPRA5A9 Stainless-Steel Control Station

Overview

Appleton U63W4PGPRA5A9 Stainless-Steel Control Station

Product Specifications

• Catalog Description: PILOT LIGHTS AND PUSH BUTTON CONTROL STATION, TYPE BOTTOM, CONSTRUCTIONAL FEATURE EXPLOSSIONPROOF, VOLTAGE RATING 500 VAC/110 VDC, CURRENT RATING 16/10 AMPERE AT 400 VAC, 6 AMPERE AT 500 VAC, 2 AMPERE AT 24 VDC, 1 AMPERE AT 110 VDC, 10 AMPERE AT 600 VAC, CONTACT CONFIGURATION 1NO-1NC, NUMBER OF PUSHBUTTONS 2, NUMBER OF PILOT LIGHTS 1, OPERATOR TYPE BUTTON, PILOT LIGHT TYPE 12 TO 254 VAC/12 TO 60 VDC LED, BOX TYPE SINGLE GANG, HUB SIZE (2) M25, ENCLOSURE MATERIAL STAINLESS STEEL, ENCLOSURE ZONE 1 AND 2, ZONES 21 AND 22, MOUNTING TYPE RAIL MOUNT, APPLICATION HAZARDOUS LOCATION, POWER, CHEMICAL, PETROCHEMICAL, REVERSE OSMOSIS, PULP AND PAPER PROCESSING PLANTS, PETROLEUM REFINERIES, INDUSTRIAL
• Category: Control Station Complete Assemblies
• Full Technical Description: 316L Stainless Steel Material; Natural Finish; CSA (Canada and Us) Approval; Class I Div 2 Group A B C D, Class II Group F G, Class I Zone 1, Class III, NEMA 4X, IP66 Enclosure; UNICODE[TM] 2 Brand; Temperature Rating -58 to 158 Deg F; Application Power/Chemical/Petrochemical Plant, Petroleum Refin
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Standard Industrial Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381256612
• SKU Name: app u63w4pgpra5a9
