Appleton U82W2PGA5 Aluminum Control Station

Overview

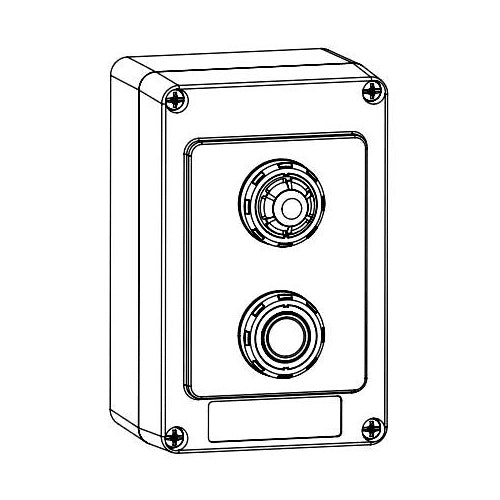

Appleton U82W2PGA5 Aluminum Control Station

Product Specifications

• Catalog Description: PUSHBUTTON AND PILOT LIGHT CONTROL STATION, TYPE BOTTOM, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, CONTACT CONFIGURATION 1NO, NUMBER OF PUSHBUTTONS 1, NUMBER OF PILOT LIGHTS 1, OPERATOR TYPE BUTTON, PILOT LIGHT TYPE 12 TO 254 VAC/12 TO 60 VDC GREEN LED, HUB SIZE (2) M20, ENCLOSURE MATERIAL GRAY EPOXY POWDER COATED ALUMINUM, ENCLOSURE ZONE 1 AND 2-21 AND 22, II 2 GD, EX DE IIC/EX DEMB IIC/EX TD A21, IK10, APPROVAL CE, IEC, OVERALL SIZE 4.33 INCH W X 6.69 INCH D X 4.72 INCH H, APPLICATION HAZARDOUS LOCATION, RAIL MOUNT
• Category: Control Station Complete Assemblies
• Full Technical Description: Pilot Light, Pushbutton Type; Aluminum Material; 4.33 Inch Width X 3.74 Inch Depth X 6.69 Inch Height Size; Gray Epoxy Powder Coated Finish; 1NO Contact Configuration; 690 Volt AC 16 Amp, 220 Volt DC 6 Amp Contact Rating; CE Approval; Zone 1 and 2/21 and 22, IP66/IK10 Enclosure; Momentary Operator Type; (2) M20 Hub Cable/Conduit Entry; UNICODE[TM] 2 Brand; Name Plate Hand-Off-Auto; Includes Internal Ground Screw; Application Chemical/Petrochemical Plant, Refinery,
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Standard Industrial Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381259569
• SKU Name: app u82w2pga5
