Appleton U83W4A5A9D3 Aluminum Control Station

Overview

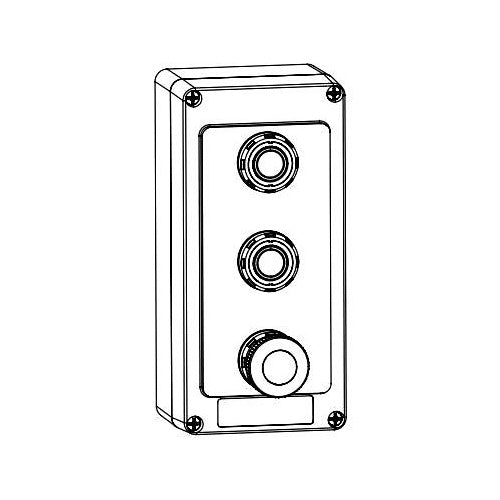

Appleton U83W4A5A9D3 Aluminum Control Station

Product Specifications

• Catalog Description: EMERGENCY STOP AND PUSHBUTTON CONTROL STATION, TYPE BOTTOM, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, CONTACT CONFIGURATION 2NO-2NC, HUB SIZE (2) M25, ENCLOSURE MATERIAL GRAY EPOXY POWDER COATED ALUMINUM, ENCLOSURE ZONE 1 AND 2-21 AND 22, II 2 GD, EX DE IIC/EX DEMB IIC/EX TD A21, IK10, APPROVAL CE, IEC, OVERALL SIZE 4.33 INCH W X 3.74 INCH D X 9.06 INCH H, APPLICATION HAZARDOUS LOCATION, OPERATION TYPE MOMENTARY/MAINTAINED, RAIL MOUNT
• Category: Control Station Complete Assemblies
• Full Technical Description: Push-Pull Emergency Stop, Twin Pushbutton Type; Aluminum Material; 4.33 Inch Width X 3.74 Inch Depth X 9 Inch Height Size; Gray Epoxy Powder Coated Finish; 2NO-2NC Contact Configuration; 690 Volt AC 16 Amp, 220 Volt DC 6 Amp Contact Rating; CE Approval; Zone 1 and 2/21 and 22, IP66/IK10 Enclosure; Momentary/Maintained Operator Type; (2) M25 (Bottom) Hub Cable/Conduit Entry; UNICODE[TM] 2 Brand; Name Plate Hand-Off-Auto; Includes Internal Ground Screw; Application Chemical/Petrochemical Plant, Refinery, Process Industry;
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Standard Industrial Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381261418
• SKU Name: app u83w4a5a9d3
