Appleton U83W4PGA5A9 Aluminum Control Station

Overview

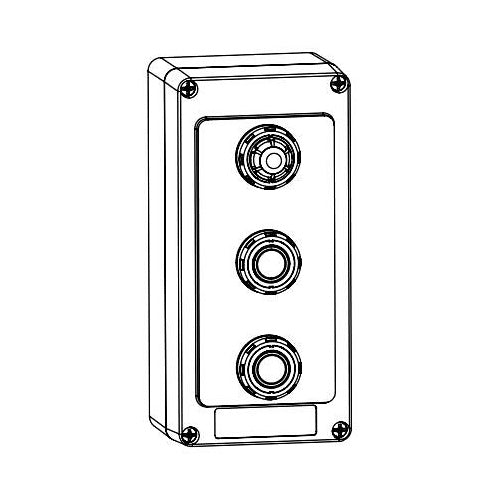

Appleton U83W4PGA5A9 Aluminum Control Station

Product Specifications

• Catalog Description: PUSHBUTTON AND PILOT LIGHT CONTROL STATION, TYPE BOTTOM, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, CONTACT CONFIGURATION 1NO-1NC, NUMBER OF PUSHBUTTONS 2, NUMBER OF PILOT LIGHTS 1, OPERATOR TYPE BUTTON, PILOT LIGHT TYPE 12 TO 254 VAC/12 TO 60 VDC GREEN LED, HUB SIZE (2) M25, ENCLOSURE MATERIAL GRAY EPOXY POWDER COATED ALUMINUM, ENCLOSURE ZONE 1 AND 2-21 AND 22, II 2 GD, EX DE IIC/EX DEMB IIC/EX TD A21, IK10, APPROVAL CE, IEC, OVERALL SIZE 4.33 INCH W X 3.74 INCH D X 9.06 INCH H, APPLICATION HAZARDOUS LOCATION, RAIL MOUNT
• Category: Control Station Complete Assemblies
• Full Technical Description: Bottom Type; 1NO-1NC Contact Configuration; (2) M25 Hub Size; Gray Epoxy Powder Coated Aluminum Enclosure Material; 600 Volt AC Voltage Rating; Class II Div 2 Gd, Zone 1 and 2/21 and 22, IP66/IK10 Enclosure; 10 Amp Current Rating; I, O Legend; Button Operator Type; 2 Circuit(S); Size 3 Box Type; Green LED Pilot Light Type; 2 Pushbutton(S); 1 Pilot Light(S); UNICODE[TM] 2 Brand; Overall Dimension 4.33 Inch Width X 3.
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pushbutton Switch and Pilot Light Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381261555
• SKU Name: app u83w4pga5a9
