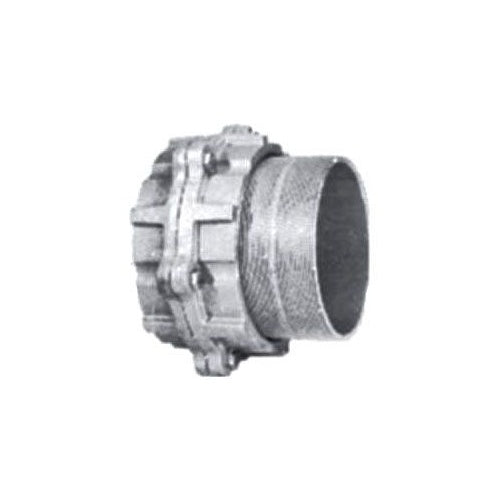

Appleton UNY500R 5" Female/Male Union

Overview

Appleton UNY500R 5" Female/Male Union

Product Specifications

• UPC: 78138130472
• Approval: UL 886
• Additional Information: Application Joining Conduit and Connecting Conduit to Enclosures. Facilitates Modifications, Permits Removal of Enclosures Without Turning or Removal of Conduit, for Expansion and Contraction of Conduit
• Catalog Number: UNY500R
• Brand Name: Unilet[R]
• Model: UNY
• Type: Male/Female
• Material: Zinc Electroplated Dichromate Epoxy Powder Coated Malleable Iron
• Trade Size: 5 Inch
• Diameter: 8.33 Inch
• Length: 5.63 Inch
• Catalog Description: EXPLOSIONPROOF CONDUIT UNION, TYPE MALE/FEMALE, MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON, TRADE SIZE 5 INCH, DIAMETER 8.33 INCH, LENGTH 5.63 INCH, APPROVAL UL, CSA, APPLICATION JOINING CONDUIT AND CONNECTING CONDUIT TO ENCLOSURES, PERMITS REMOVAL OF ENCLOSURES WITHOUT TURNING OR REMOVAL OF CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Male/Female Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; 5.63 Inch; UL 886/1203, CSA C22.2 Approval; 8.33 Inch Diameter; 5 Inch Trade Size; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Enclosure Rating Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; UNY Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Standard Conduit Union
• Unspsc: 39131707
• UPC 12 Digit: 781381304726
• SKU Name: app uny500r

Resources

• Manufacturer Spec Sheet
