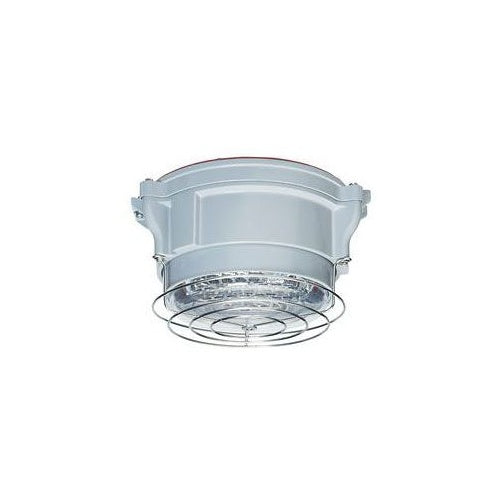

Appleton VMV5LCP5BU LED Light Fixture

Overview

Appleton VMV5LCP5BU LED Light Fixture

Product Specifications

• UPC: 78138117992
• Intensity: 5300 Lumen
• Life In Hour: 60000
• Input Voltage: 120 to 277 Volt AC at 50/60 Hertz, 125 to 300 Volt DC
• Reflector Type: Fiberglass Reinforced White Polyester
• Refractor Type: Heat-Resistant Prismatic Glass
• Housing Material: Copper-Free Cast Aluminum
• Finish: Gray Epoxy Powder Coated
• Enclosure: NEMA 3R/4/4X, IP66/IP67, Class I Div 2 Group A B C D, Class I Zone 2 Group IIC, Class II Div 1 Group E F G, Zone 20 Group IIIC, Zone 21, AEx tb IIIC EX tb IIIC
• Area Classification: Hazardous Location
• Applicable Standard: ANSI/IEC, NEC/CEC, ATEX/IECE, ABS, IDA
• Catalog Number: VMV5LCP5BU
• Application: Industrial, Marine and Wet Location, Areas of Low Clearance, Walkway/Catwalk, Stairwell, General-Purpose Task Lighting, Tunnel, Platform, Loading Area, Conveyor
• Approval: UL, CSA C22.2 (Canada and US)
• Additional Information: Color Temperature 5000 Kelvin (Cool White); Light Distribution Pattern NEMA Type V Clear Polycarbonate Globe
• Brand Name: CONTENDER[TM]
• Model: VMV
• Item: Lighting Fixture
• Lamp Type: LED
• Lamp Voltage: 120 to 277 Volt AC at 50/60 Hertz, 125 to 300 Volt DC
• Lamp Current: 0.48 Amp
• Lamp Wattage: 48 Watt
• Catalog Description: CONTENDER LED LUMINAIRE, 5000 LUMEN, 5000K COOL WHITE COLOR TEMPERATURE, NEMA TYPE V, CLEAR POLYCARBONATE GLOBE, 120-277VAC AND 125-300VDC, 50/60HZ
• Category: Led Wet Location Lighting
• Full Technical Description: 11.6 Inch Width X 6 Inch Height Size; Electrostatically Applied Baked Gray Epoxy Powder Coated Finish; UL, CSA (Canada and Us), CSA C22.2 Approval; Nec/Cec, ABS, Ida, DLC Applicable Standard; Pulp and Paper Mill, Processing/Manufacturing Plant, Waste Treatment, Warehouse Application; Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/3R/4, IP66/67 Enclosure; Luminaire; LED Lamp Type; 120/277 Volt AC 50/60 Hertz, 125/300 Volt DC Input Voltage; Copper-Free Cast Aluminum Housing Material; 60000 Life in Hour; Fiberglass Reinforced White Polyester Reflector Type; 5300 Lumen Intensity; Fiberglass Reinforced White Polyester Reflector Type; Marine/Wet Location Area Classification; CONTENDER[TM] Brand; Input Current Rating 0.2 Amp at 277 Volt AC, 0.16 Amp at 300 Volt DC; Input Power Rating 48 Watt at 277 Volt AC, 48 Watt at 300 Volt DC; Power Factor 0.97; Color Temperature 4000 Kelvin (Neutral); Efficacy 114 Lumen Per Watt; Color Rendering Index 70; Ambient Temperature Rating -40 to 149 Deg F; Refractor Type NEMA Type 5 Clear Polycarbonate Globe; VMV Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Lighting Fixture
• Unspsc: 39112102
• UPC 12 Digit: 781381179928
• SKU Name: app vmv5lcp5bu

Resources

• Product Spec Sheet
