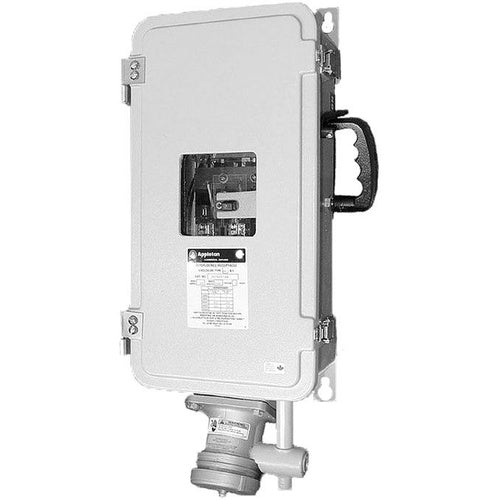

Appleton WS30AUX2 2N0/2Nc Auxillary Interlock

Overview

Appleton WS30AUX2 2N0/2Nc Auxillary Interlock

Product Specifications

• UPC: 78138171826
• Catalog Number: WS30AUX2
• Item: AUXILIARY CONTACT
• Switch Type: DISCONNECT
• Additional Information: 2 NORMALLY OPENED AND 2 NORMALLY CLOSED CONTACT; FOR 100 AMPERE FUSED PLUG
• Catalog Description: INTERLOCKED SWITCHED RECEPTACLE AUXILIARY CONTACT, TYPE FUSED AUXILIARY CONTACT, USED ON IBR SERIES INTERLOCKED SWITCHED RECEPTACLE, PHASE 3, POWER RATING 7.5/20 HP AT 600 VAC, CURRENT RATING 30 AMPERE, APPLICATION AUTOMOTIVE AND STEEL PROCESSING PLANT, PULP AND PAPER PROCESSING PLANT, MILK PROCESSING PLANT AND CREAMERY, FABRICATION YARDS AND SHIPYARD, REFRIGERATED TRUCK TERMINAL MOTOR GENERATOR UNIT, WELDER, PUMP
• Category: Safety Switch Accessories
• Full Technical Description: Interlocked Type; Epoxy Powder Coated Copper-Free Aluminum Material; 3 Wire(S); 600 Volt AC 3-Phase Voltage Rating; NEMA 3/4X/5 Enclosure; 30 Amp Current Rating; 3 Pole(S); Weatherproof, Water Tight; Fusible Fuse Provision; Spring; 2 Grounding Style; Switching Configuration 2NO-NC; Application Chemical/Process Facility/Meat Packing Plant; Applicable Standard NEC
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Receptacle with Disconnect
• Unspsc: 39121406
• UPC 12 Digit: 781381718264
• SKU Name: app ws30aux2
