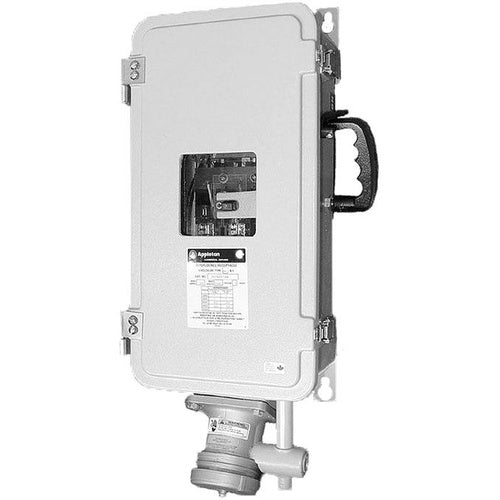

Appleton WS60AUX1 1N0/Inc Auxillary Interlock

Overview

Appleton WS60AUX1 1N0/Inc Auxillary Interlock

Product Specifications

• UPC: 78138171827
• Catalog Number: WS60AUX1
• Item: AUXILIARY CONTACT
• Switch Type: DISCONNECT
• Additional Information: 1 NORMALLY OPENED AND 1 NORMALLY CLOSED CONTACT; FOR 60 AMPERE PLUG
• Catalog Description: INTERLOCKED SWITCHED RECEPTACLE AUXILIARY CONTACT, TYPE FUSED AUXILIARY CONTACT, USED ON IBR SERIES INTERLOCKED SWITCHED RECEPTACLE, PHASE 3, POWER RATING 15/50 HP AT 600 VAC, CURRENT RATING 60 AMPERE, APPLICATION AUTOMOTIVE AND STEEL PROCESSING PLANT, PULP AND PAPER PROCESSING PLANT, MILK PROCESSING PLANT AND CREAMERY, FABRICATION YARDS AND SHIPYARD, REFRIGERATED TRUCK TERMINAL MOTOR GENERATOR UNIT, WELDER, PUMP
• Category: Safety Switch Accessories
• Full Technical Description: Interlocked Type; Epoxy Powder Coated Copper-Free Aluminum Material; 3 Wire(S); 600 Volt AC 3-Phase Voltage Rating; NEMA 3/4X/5 Enclosure; 60 Amp Current Rating; 3 Pole(S); Weatherproof, Water Tight; Fusible Fuse Provision; Spring; 2 Grounding Style; Switching Configuration 1NO-NC; Application Chemical/Process Facility/Meat Packing Plant; Applicable Standard NEC
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Receptacle with Disconnect
• Unspsc: 39121406
• UPC 12 Digit: 781381718271
• SKU Name: app ws60aux1

Resources

• Manufacturer Spec Sheet
