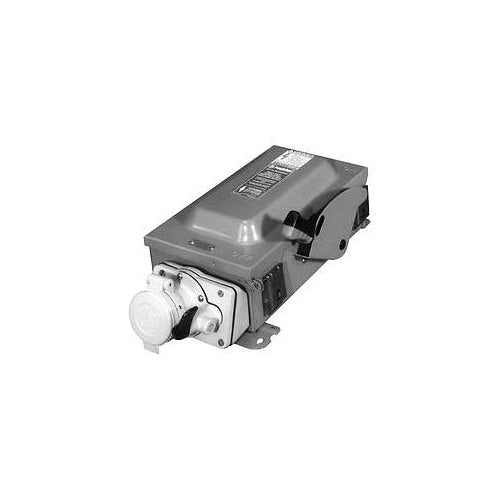

Appleton WSRD33542WSQ Nema12 30A Receptacle

Overview

Appleton WSRD33542WSQ Nema12 30A Receptacle

Product Specifications

• Catalog Description: INTERLOCKED RECEPTACLE AND DISCONNECT SWITCH, TYPE INTERLOCKED, CONSTRUCTIONAL FEATURE CORROSION RESISTANT, RAINTIGHT, WATERTIGHT, VOLTAGE RATING 600 VAC AT 50/60 HZ, 250 VDC, CURRENT RATING 30 AMPERE, NUMBER OF POLES 4, NUMBER OF WIRES 3, DOOR TYPE SPRING DOOR, REMOVABLE HINGED, PADLOCKABLE COVER, FUSE PROVISION NON-FUSIBLE, HUB TYPE 1-1/2 INCH, GROUNDING STYLE 2, SHELL, EXTRA POLE, MATERIAL EPOXY POWDER COATED COPPER-FREE ALUMINUM (RECEPTACLE), STAINLESS STEEL (ENCLOSURE), ENCLOSURE NEMA 3/3R/4/4X/12, WIRE SIZE 14 TO 2 AWG, POWER RATING 30 HP AT 600 VAC, INCLUDES VIEWING WINDOW, APPROVAL UL 98/50E/1682/1686, CSA C22.2, APPLICATION WELDER, GENERATOR, COMPRESSOR, INFRARED OVEN, BATCH FEEDER, CONVEYOR, TRUCK TERMINAL, MARINE DOCK, INDUSTRIAL PLANT
• Category: Pin & Sleeve Devices
• Full Technical Description: Interlocked Type; Epoxy Powder Coated Copper-Free Aluminum (Receptacle), Enamel Coated Sheet Metal (Enclosure) Material; 3 Wire(S); 600 Volt AC 50/60 Hertz 3-Phase, 250 Volt DC Voltage Rating; NEMA 3/12 Enclosure; 30 Amp Current Rating; 4 Pole(S); Rain Tight, Water Tight; Non-Fusible
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Receptacle with Disconnect
• Unspsc: 39121406
• UPC 12 Digit: 781381756983
• SKU Name: app wsrd33542wsq

Resources

• Manufacturer Spec Sheet
