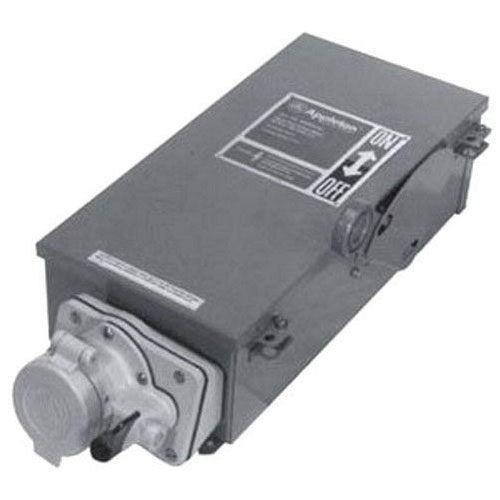

Appleton WSRD6352SQ Nema12 60A Receptacle

Overview

Appleton WSRD6352SQ Nema12 60A Receptacle

Product Specifications

• UPC: 78138175686
• Door Type: Removable Hinged, Pad Lockable Cover
• Fuse Provision: Fusible, Class R
• Grounding Style: 2-Shell/Extra Pole
• Material: Epoxy Powder Coated (Inside, Outside) Copper-Free Aluminum (Receptacle Assembly), Enamel Coated Sheet Metal (Enclosure)
• Enclosure: NEMA 3/3R/4/4X/12
• Additional Information: Application Welder, Generator, Compressor, Infrared Oven, Batch Feeder, Conveyor, Truck Terminal, Marine Dock; Approval UL 98/50E/1682/1686, CSA
• Catalog Number: WSRD6352SQ
• Model: WSRD
• Type: Interlocked
• Constructional Feature: Corrosion Resistant, Rain Tight, Water Tight
• Voltage Rating: 600 Volt AC 3-Phase/250 Volt DC
• Current Rating: 60 Amp
• Number Of Poles: 4
• Number Of Wires: 3
• Catalog Description: APPLETON FUSED WSRD SERIES INTERLOCKED RECEPTACLE WITH ENCLOSURE, NUMBER OF POLES: 4, NUMBER OF WIRES: 3, WIRE SIZE: 6 - 2 AWG, AMPERAGE RATING: 60 AMP, VOLTAGE RATING: 600 VAC AT 50/60 HZ, 250 VDC, PHASE: 3 PH, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM RECEPTACLE, SHEET METAL ENCLOSURE, NEMA RATING: NEMA 3R, 12, MOUNTING: SURFACE MOUNT, MOTOR HORSEPOWER: 15 HP STANDARD/50 HP MAXIMUM AT 600 VAC, FINISH: EPOXY POWDER COAT RECEPTACLE, ENAMEL COATED ENCLOSURE, DIMENSIONS: 10.81 IN WIDTH X 23 IN HEIGHT X 10 IN DEPTH, STANDARD: UL 98, UL 50E, UL 1682, UL 1686, UL LISTED: E145917, E160652, CSA STANDARD: C22.2 NO.4, C22.2 NO. 182.1, CSA CERTIFIED: 025875, FOR ACP6034BC MATING PLUG
• Category: Pin & Sleeve Devices
• Full Technical Description: Interlocked Type; Epoxy Powder Coated Copper-Free Aluminum (Receptacle), Enamel Coated Sheet Metal (Enclosure) Material; 3 Wire(S); 600 Volt AC 50/60 Hertz 3-Phase, 250 Volt DC Voltage Rating; NEMA 3/12 Enclosure; 60 Amp Current Rating; 4 Pole(S); Rain Tight, Water Tight; Fusible Fuse Provision; Spring, Padlockable Cover; 2, Shell, Extra Pole Grounding Style; Wire Size 6 to 2 AWG; Power Rating 15 HP at 600 Volt AC (Standard), 50 HP at 600 Volt AC (Maximum); Excludes Viewing Window; Application Welder, Generator, Compressor, Infrared Oven, Conveyor, Truck Terminal, Marine Dock;
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Receptacle with Disconnect
• Unspsc: 39121406
• UPC 12 Digit: 781381756860
• SKU Name: app wsrd6352sq
