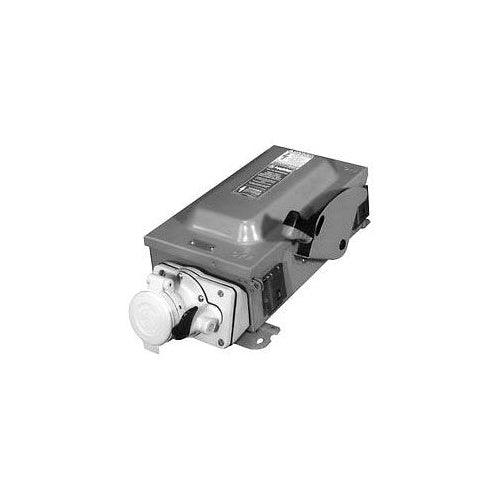

Appleton WSRD63542SQ Nema12 60A Receptacle

Overview

Appleton WSRD63542SQ Nema12 60A Receptacle

Product Specifications

• UPC: 78138175687
• Number Of Wires: 3
• Door Type: Removable Hinged, Pad lockable Cover
• Fuse Provision: Non-Fusible, Class R
• Grounding Style: 2, Shell, Extra Pole
• Material: Epoxy Powder Coated (Insides, Outside) Copper Free Aluminum Receptacle Assembly, Enamel Coated Sheet Metal Enclosure
• Enclosure: NEMA 3/3R/4/4X/12
• Additional Information: Approval UL 98/50E/1682/1686, CSA C22.2; Application Welder, Generator, Compressor, Infrared Oven, Batch Feeder, Conveyor, Truck Terminal, Marine Dock
• Catalog Number: WSRD63542SQ
• Brand Name: Powertite[R]
• Model: WSRD
• Type: Interlocked
• Constructional Feature: Corrosion Resistant, Raintight, Watertight
• Voltage Rating: 600 VAC 3-Phase/250 VDC
• Current Rating: 60 Ampere
• Number Of Poles: 4
• Catalog Description: INTERLOCKED RECEPTACLE AND DISCONNECT SWITCH, TYPE INTERLOCKED, CONSTRUCTIONAL FEATURE CORROSION RESISTANT, RAINTIGHT, WATERTIGHT, VOLTAGE RATING 600 VAC AT 50/60 HZ, 250 VDC, CURRENT RATING 60 AMPERE, NUMBER OF POLES 4, NUMBER OF WIRES 3, DOOR TYPE REMOVABLE HINGED, PADLOCKABLE COVER, FUSE PROVISION NON-FUSIBLE, HUB TYPE 1-1/2 INCH, GROUNDING STYLE 2, SHELL, EXTRA POLE, MATERIAL EPOXY POWDER COATED COPPER-FREE ALUMINUM (RECEPTACLE), ENAMEL COATED SHEET METAL (ENCLOSURE), ENCLOSURE NEMA 3R/12, WIRE SIZE 6 TO 2 AWG, POWER RATING 60 HP AT 600 VAC, EXCLUDES VIEWING WINDOW, APPROVAL UL 98/50E/1682/1686, CSA C22.2, APPLICATION WELDER, GENERATOR, COMPRESSOR, INFRARED OVEN, BATCH FEEDER, CONVEYOR, TRUCK TERMINAL, MARINE DOCK, INDUSTRIAL PLANT
• Category: Pin & Sleeve Devices
• Full Technical Description: Interlocked Type; Epoxy Powder Coated Copper-Free Aluminum (Receptacle), Enamel Coated Sheet Metal (Enclosure) Material; 3 Wire(S); 600 Volt AC 50/60 Hertz 3-Phase, 250 Volt DC Voltage Rating; NEMA 3/12 Enclosure; 60 Amp Current Rating; 4 Pole(S); Rain Tight, Water Tight; Non-Fusible Fuse Provision; Spring, Padlockable Cover; 2, Shell, Extra Pole Grounding Style; Wire Size 6 to 2 AWG; Power Rating 60 HP at 600 Volt AC; Excludes Viewing Window; Application Welder, Generator, Compressor, Infrared Oven, Conveyor, Truck Terminal,
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Receptacle with Disconnect
• Unspsc: 39121406
• UPC 12 Digit: 781381756877
• SKU Name: app wsrd63542sq
