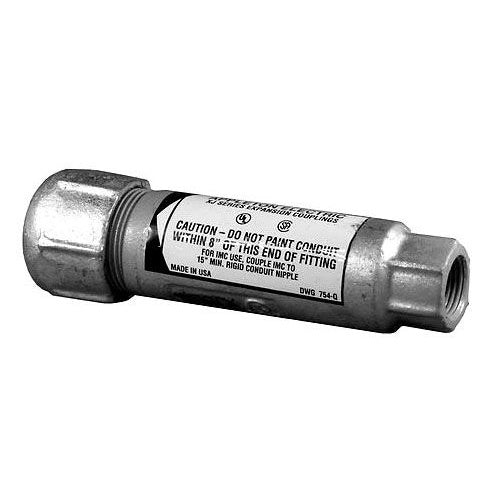

Appleton XJ400-8 4" Expansion Coupling

Overview

Appleton XJ400-8 4" Expansion Coupling

Product Specifications

• UPC: 78138128941
• Material: Malleable Iron
• Approval: UL 467
• Used On: Rigid Metal Conduit
• Additional Information: Application Provide for Movement that Take Place on Long Run of Conduit Installed in Building of Great Length and Between Division of Building which are Sectioned Apart by Structural Expansion Joint
• Catalog Number: XJ400-8
• Brand Name: Appleton
• Model: XJ
• Trade Size: 4 Inch
• Diameter: 6.63 Inch
• Length: 12.63 Inch
• Maximum Movement: 8 Inch
• Constructional Feature: Weather Tight
• Catalog Description: APPLETON 8 IN EXPANSION COUPLING, TRADE SIZE: 4 IN, OUTSIDE DIAMETER: 6.63 IN, LENGTH: 12.63 IN, FLEXIBILITY: RIGID, MATERIAL: MALLEABLE IRON, FINISH: HOT DIPPED GALVANIZED, STANDARD: UL 467, UL FILE NUMBER E14814, FOR RIGID METAL CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Hot Dip Galvanized Malleable Iron Material; 12.63 Inch; Rigid Metal Conduit Used on; 8 Inch Max. Movement; UL 467 Approval; 6.63 Inch Diameter; 4 Inch Trade Size; Weather Tight; Application Commercial/Industrial, Indoor/Outdoor; Applicable Standard NEC; XJ Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Expansion/Deflection Joint
• Unspsc: 39131707
• UPC 12 Digit: 781381289412
• SKU Name: app xj4008

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
