Appleton acsew060804

Overview

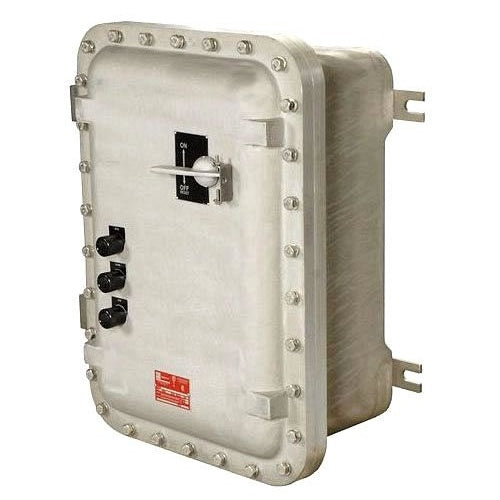

Appleton ACSEW060804 Explosion-Proof Watertight Control Center

Product Specifications

• Part Number: ACSEW060804
• UPC / GTIN: 78138184696
• UPC: 78138184696
• Enclosure: Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group IIA IIB, IP66, Class II, Div 1 and 2 Group E F G, Class III, NEMA 4/7B/7C/7D/9E/9F/9G
• Approval: UL 1203, CSA C22.2
• Additional Information: Inner Size 8 Inch L x 6 Inch W x 3.75 Inch D; Overall Dimension 10.4 Inch W x 6.5 Inch D x 12.4 Inch H; Cover Thickness 0.75 Inch
• Model: ACSEW
• Constructional Feature: Explosionproof, Dust Ignitionproof
• Voltage Rating: 600 VAC
• Current Rating: 10 Ampere
• Operator Type: Button
• Pilot Light Type: 6 V Transformer
• Enclosure Material: Copper Free Aluminum
• CATALOG DESCRIPTION: EXPLOSIONPROOF CAST CONTROL CENTER, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, OPERATOR TYPE BUTTON, PILOT LIGHT TYPE 6 V TRANSFORMER, ENCLOSURE MATERIAL SHOT BLAST COPPER-FREE ALUMINUM, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS I ZONE 1 AND 2 GROUP IIA IIB, IP66, CLASS II, DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/7BCD/9EFG, APPROVAL UL 1203, CSA C22.2, INNER SIZE 8 INCH L X 6 INCH W X 3.75 INCH D, OVERALL SIZE 10.4 INCH W X 6.5 INCH D X 12.4 INCH H, COVER THICKNESS 0.75 INCH, WEIGHT 20 LB
• Full Technical Description: Feet Mount Type; Shot Blast Sand Copper-Free Cast Aluminum Enclosure Material; UL 1203, CSA C22.2 Approval; 600 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7/9 Enclosure; 10 Amp Current Rating; Explosionproof, Dust Ignitionproof; Button Operator Type; 6 Volt AC Up to 600 Volt AC With Transformer Pilot Light Type; Overall Dimension 10.4 Inch Width X 6.5 Inch Depth X 12.4 Inch Height; Inner Size 8 Inch Length X 6 Inch Width X 3.75 Inch Depth; Thread Size 3/4 Inch-14 TPI; Cover Thickness 0.75 Inch; Number of Operators 6; Material Stainless Steel (Cover Bolt/Mounting Feet), Neoprene (O-ring); Applic
• Manufacturer: Appleton Electric
• Product Description: Appleton ACSEW060804 Explosion-Proof Watertight Control Center
• UNSPSC: 39121331
• UPC 12 Digit: 781381846967
